Split type co2 laser cutting and engraving machine

Product name: Split type co2 laser cutting and engraving machine
Model: LM-1060 split, LM-1390 split
Laser power: 80w, 100w, 130w, 150w
Working range: 1000x600mm, 1300x900mm
Application: Marble, granite, ceramic tiles, wooden products, paper, plastic, rubber, acrylic, bamboo, double-color sheets, glass, wine bottles and other non-metal materials.

Machine features

1. Adopt upper and lower two parts split design to facilitate customers operation and avoid heavy material carrying and loading.
2. To provide bigger convenience for customers to engrave objects with different thickness. It is popular in stone engraving and other industries.
3. Advanced DSP control system, with high speed and easy operation.
4. High engraving speed, greatly improving the processing efficiency.
5. The machine is suitable for rooms with narrow doors, and machines with conventional structures cannot enter the door.
6. The upper and lower parts of the machine can be used separately or assembled.

Technical parameters

Model LM-1060 LM-1390
Laser type                                       CO2 glass laser tube, wavelength 10.6μm, water-cooled
Laser power  80w, 100w, 130w 80w, 100w, 130w, 150w
Working area  1000x600mm 1300x900mm
Engraving speed                                                             0-1000mm/sec
Cutting speed                                                             0-500mm/sec
Repeating location                                                            ±0.01
Transmission type                                                           Belt transmission
Driving system                                                           Stepper motor
Machine table                                          Blade table (alternative: honeycomb table)
Graphic format supported                    *.plt, *.dst, *.dxf, *.bmp, *.dwg, *.ai, *.las, supporting AutoCAD and CorelDraw
Software supported                                                CorelDraw, AutoCAD
Control system                      RuiDa RD6445G DSP Off-line control system, laser power 0~100% adjustable
Minimum letter size                                      Chinese 2.0x2.0mm, English 1.0x1.0mm
Working voltage                             Single phase 220V/50Hz (Optional: 220V/60Hz, 110V/60Hz)
Working condition                            Temperature 0~45 Celsius; Humidity 5%~95% no condensation

CO2 LASER WOKRING CAPACITY

Material Engrave Cut Material Engrave Cut
Wood  Pressboard
Acrylic  Rubber
Fabric  Wood Veneer
MDF Plywood
Delrin Plastic
Cloth Cork
Leather Corian
Glass   Fiberglass
Ceramic   Tile
Marble   Anodized Aluminum
Matte Board Stainless Steel
Melamine Brass
Paper Titanium
Mylar Bare Metals
Coated Metals   Painted Metals

Please check with us if your material is not in the above list.

Video

Machine details

1.) The upper and lower parts of the machine can be split.
2.) The height of the upper part can be adjusted by turning the four screw rods.
3.) The upper part of the machine can work independently.
4.) When carving stone (heavier objects), the upper part of the machine can be placed above the stone for carving without moving the heavy stone to the machine platform.

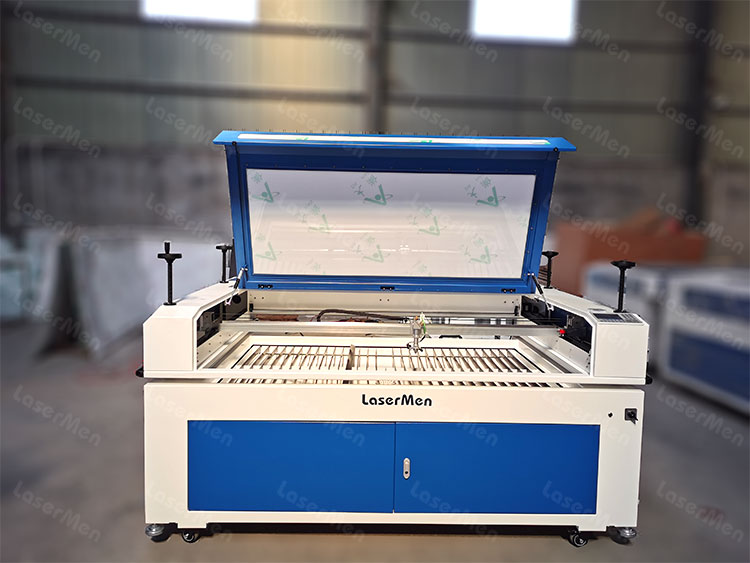

split co2 laser cutting engraving machine

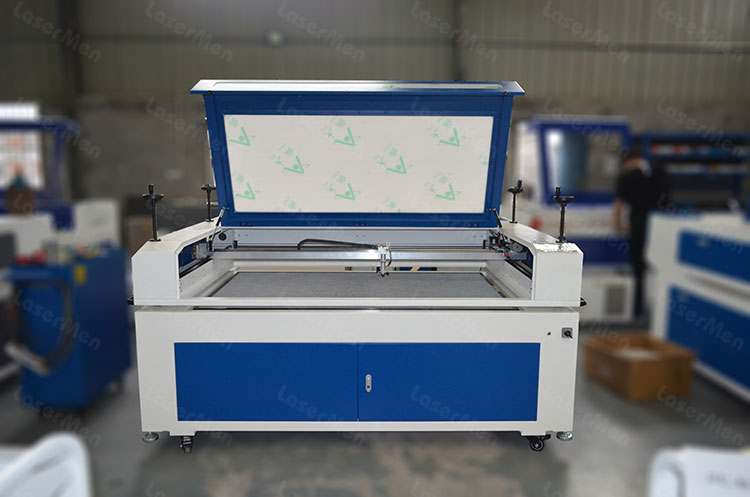

split type co2 laser cutting and engraving machine

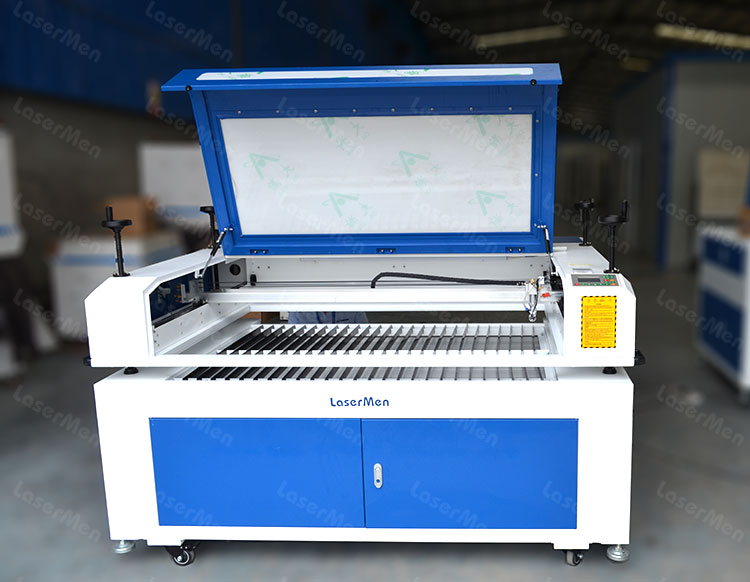

split type co2 laser cutting engraving machine
split type co2 laser cutting engraving machine
split type co2 laser cutting engraving machine
Up and down woking table: this machine also can equipt with rotary device to engrave round materials.
Wokring table: blade woking table / honeycome working table.
split type co2 laser cutting engraving machine up and down table
Man-machine conversation interface: ruida controller, function buttons are in a row, easy to operate.
split type co2 laser cutting engraving machine detailes

Machine Application

Applicable Materials:
Marble, granite, ceramic tiles, wooden products, paper, plastic, rubber, acrylic, bamboo, double-color sheets, glass, wine bottles and other non-metal materials.
co2 samples
