Home > laser machines > Fiber laser cutting machine

Hybrid Type Fiber and CO2 Laser Cutter for Metal&Non-metal

Product name: Hybrid Type Fiber and CO2 Laser Cutter for Metal&Non-metal
Model: LM-1313CF
Laser power: 1000W / 1500W / 2000W / 3000w + 150W / 180W / 240W / 300W
Working range: 1300*1300mm
Application: Metal and Non-metal Cutting

Machine features

Hybrid type Fiber and CO2 laser cutting machine for metal and non-metal
Product description:
Widely used in processing if metal plates cutting, sign advertising industry, architecture modeling,lighting,high quality display panel, LED lighting box, acrylic processing etc. Suitable for cutting metal and non-metal material , such as stainless steel, carbon steel, galvanized sheet, aluminum, brass, acrylic, wood, MDF, fabric, paper, etc.
Features:
1. Metal and nonmetal cutting function only requires to modify the sofaware process parameters , very easy to operate.
2. Occupied small space, all cover design,pay more attention on environmental protection.
3. High configured imported high precision rack+guide transmission, Japanese servo system, top brand of fiber generator, high power Co2 laser tube etc.

Technical parameters

Model                                                        LM-1313CF
Laser type  Fiber+ CO2
Laser power  1000W / 1500W / 2000W / 3000w + 150w / 180w / 240w / 300w
Fiber laser brand Raycus / MAX / RECI / BWT
Working area  1300*1300mm
Fiber Cutting speed  0-60m/min
CO2 cutting speed 0-30m/min
Transmission  gear rack
Driving system  Servo motors
Cooling mode  Industrial circulation water chiller
 Working voltage 1-phase 220V±10% / 3-phase 380V±10%

fiber cutting parameter

Video

Machine details

Hybrid type fiber and co2 laser cutting machine for metal and nonmetal
Fiber and co2 laser cutting machine

Laser headHybrid fiber co2 laser cutting head, fiber laser head for cutting metal (stainless steel, carbon steel, aluminum, brass, copper, etc), extra laser head for cutting nonmetal (acrylic, wood, mdf, plywood, leather, double color plate, etc).
1300*1300 hybrid type fiber co2 laser cutting head
Japanese servo system
High speed, high precision
1313 fiber co2 laser cutting machine servo drive

High precision rack and linear guide
Transmission type: gear+guide
Advantages: High speed; high precision; low friction
hybrid type fiber co2 laser cutting machine gear rack transmission

metal and nonmetal laser cutting machine
fiber co2 laser cutting machine laser tube fiber laser generator

Machine Application

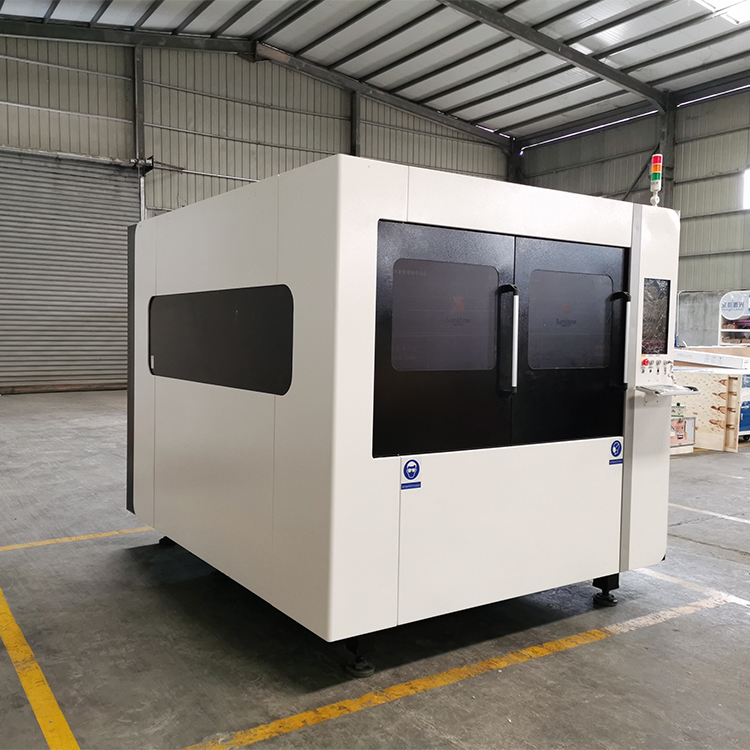

LaserMen hybrid type fiber co2 laser cutting machine with safety cover
Application industries:

Used in sheet metal processing, aviation, aerospace, electronics, electrical appliances, subway parts, automobiles, grain machinery, textile machinery, engineering machinery, precision parts, ships, metallurgical equipment, elevators, household appliance, craft giftsm tool processing, decoration, advertising, metal processing, kitchen processing and other manufacturing and processing industries.
Used in nonmetal processing, Advertising signs, craft gifts, crystal jewelry, paper-cutting crafts, architectural models, lighting, printing and packaging, electronic appliances, photo frame making, clothing leather and other industries.
Application materials:

Stainless steel, carbon steel, alloy steel, silicon steel, spring steel, aluminum, aluminum alloy, galvanized sheet, pickled sheet, copper, silver, gold, titanium and other metal sheet and pipe cutting.
Wood products, paper, plastic, rubber, acrylic, bamboo, marble, two-color board, glass, wine bottle and other non-metallic materials.
fiber laser cutting machine samples
nonmetal cutting samples
