Machine features
1. Two laser heads: one fiber laser head for cutting metal materials, and one CO2 laser head for engraving and cutting non-metallic materials.2. Equipped with a BOCHU control system, enabling precise control of both fiber and CO2 lasers for cutting both metal and non-metal materials.
3. Servo motor and high-speed module transmission achieve higher acceleration of 0.25G.
4. The 1500-watt fiber laser can cut 8mm thick carbon steel and perform high-speed cutting of stainless steel, aluminum, brass, galvanized sheet, and other metal materials.
5. In addition to control via the machine's computer panel buttons, a wireless handheld controller is also available for easier and more convenient operation.
6. The top corners of the support structure are smoothly rounded, providing more stable support and preventing scratches on the surface of the material being cut.
Technical parameters
| 1390FC Fiber CO2 Mixed Laser Cutting Machine | |
| CNC laser processing area | X=1300mm,Y=900mm |
| Fiber laser power | 1500W |
| CO2 laser power | 130W |
| Positioning accuracy | +0.01mm |
| Repeatability | ≤0.01mm |
| Maximum operating speed | 35m/min |
| Maximum acceleration | 0.25G |
| Controller | industrial computer control |
| Overall weight | 750Kg |
| Bare machine dimensions | 2750x1950x1250mm |
| Input voltage | 1-phase 220V 50/60Hz |
| Machine total power | 10kw |
Video
Machine details

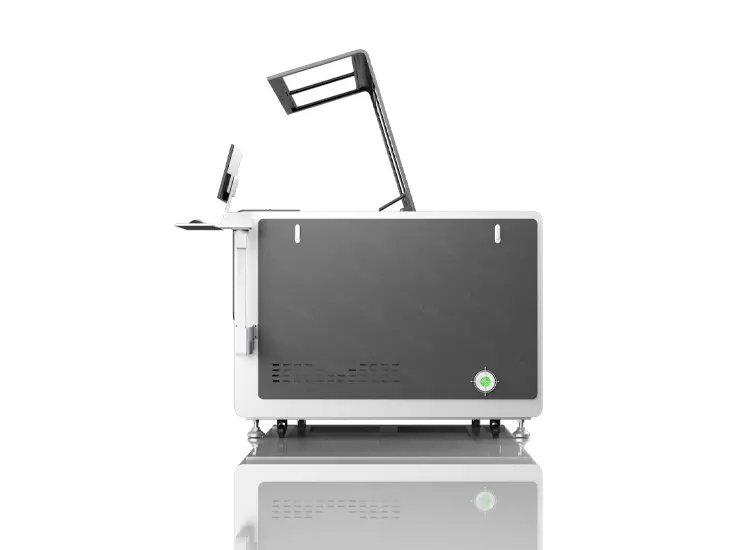

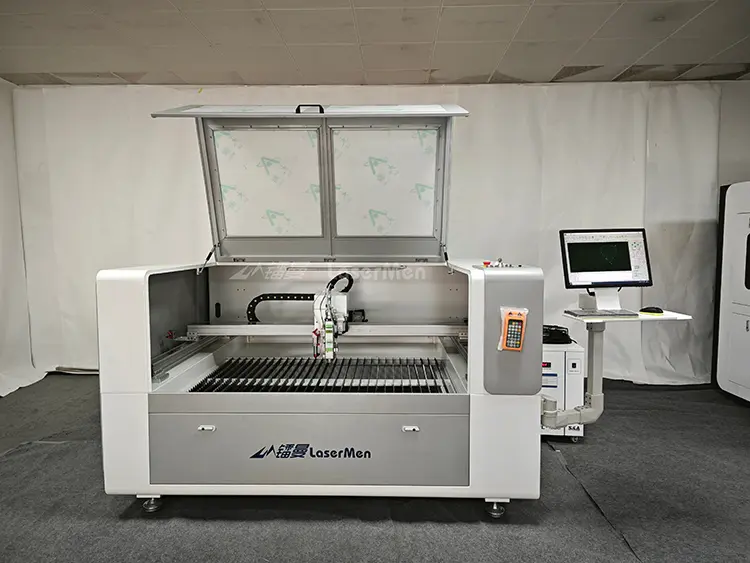

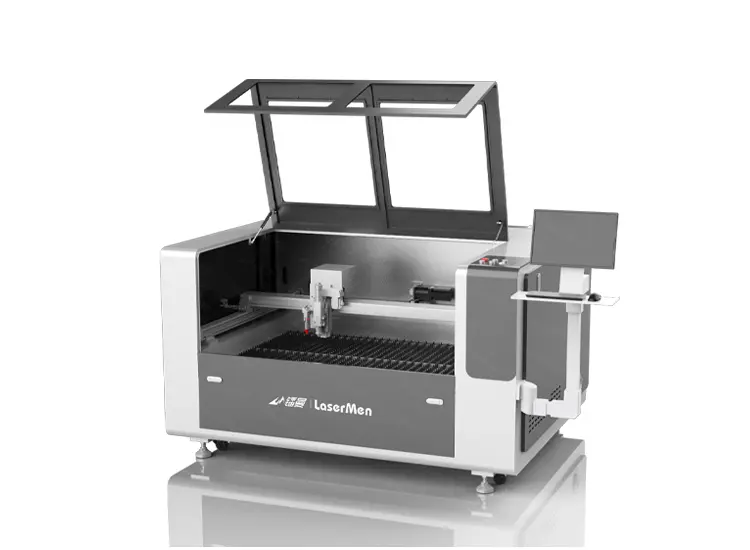

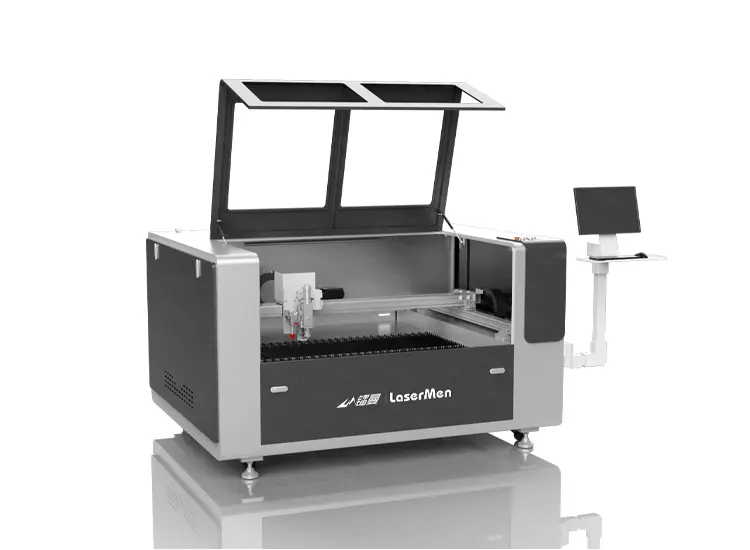

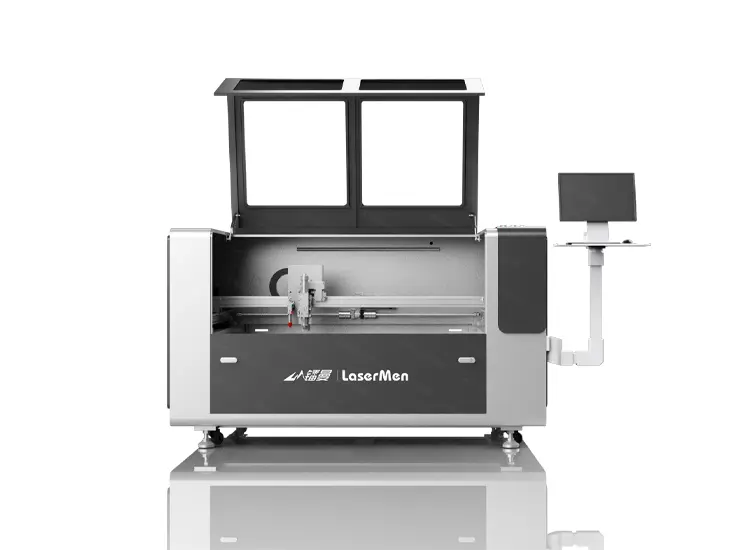

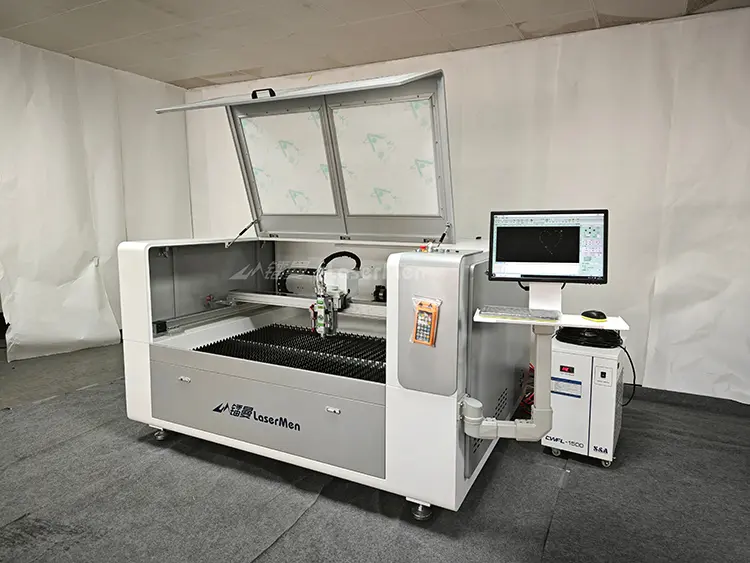

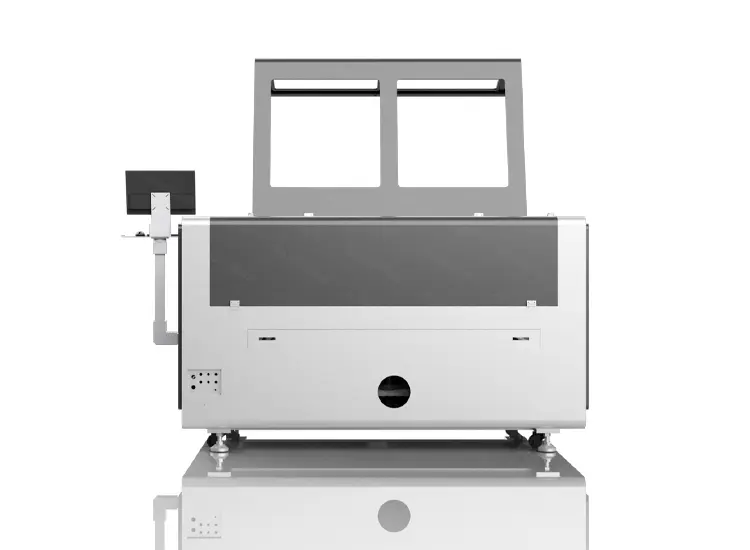

1390FC Fiber CO2 Mixed Laser Cutting Machine

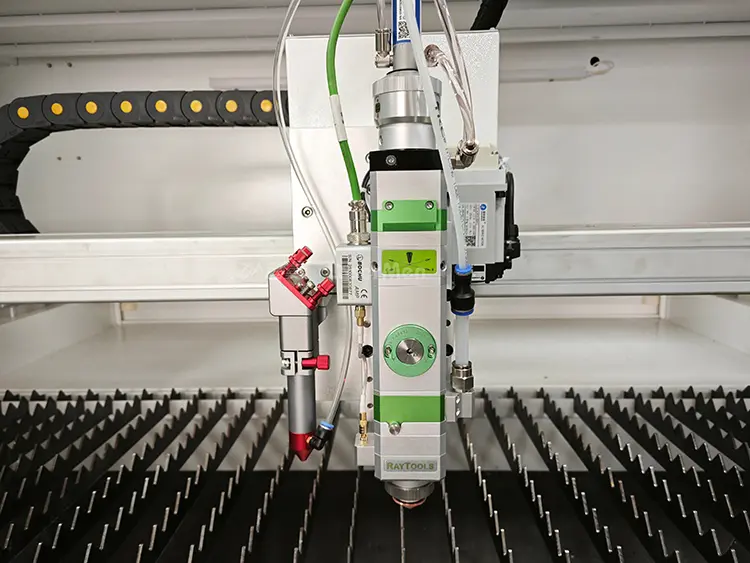

1.Two laser heads: one fiber laser head for cutting metal materials, and one CO2 laser head for engraving and cutting non-metallic materials.

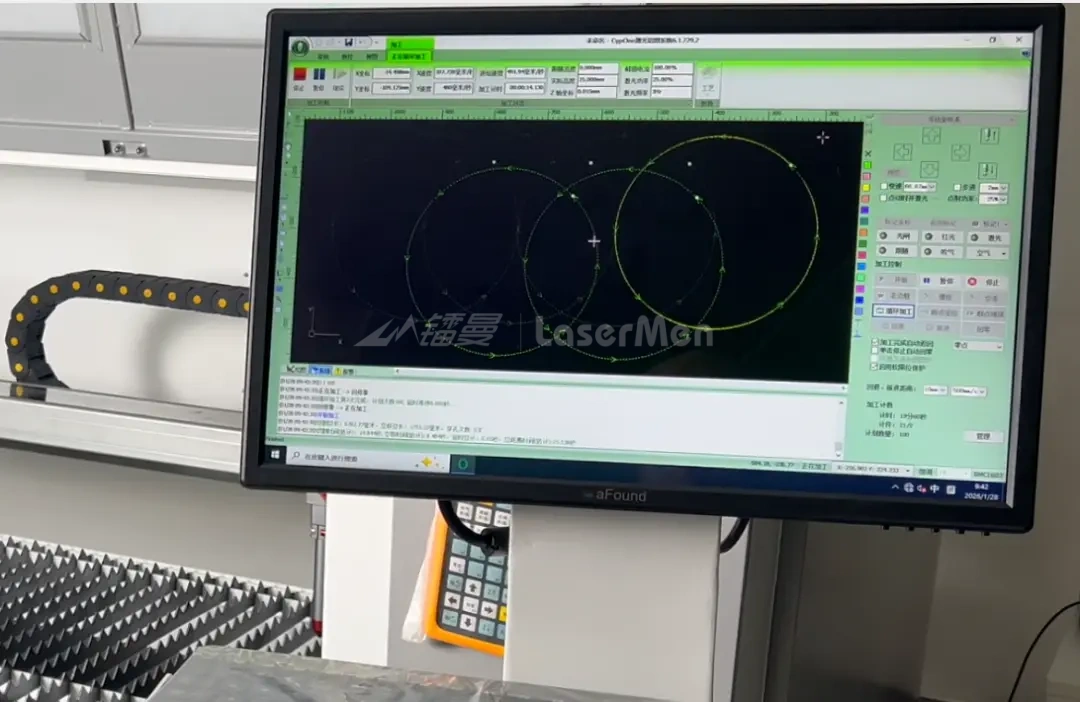

2.Using the BOCHU control system, it is possible to precisely control both fiber and CO2 lasers for cutting metals and non-metals.
3.The combination of a servo motor and a high-speed module transmission can achieve a higher acceleration of 0.25G.

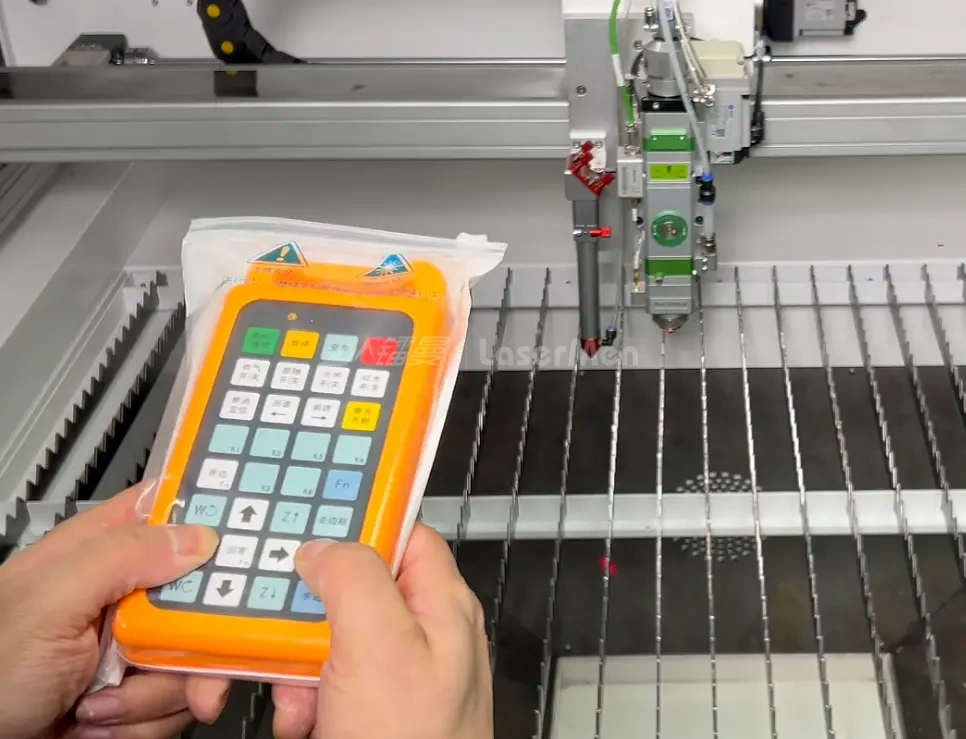

4.In addition to the control panel buttons on the machine/computer, wireless controllers can be used for easier and more convenient operation.

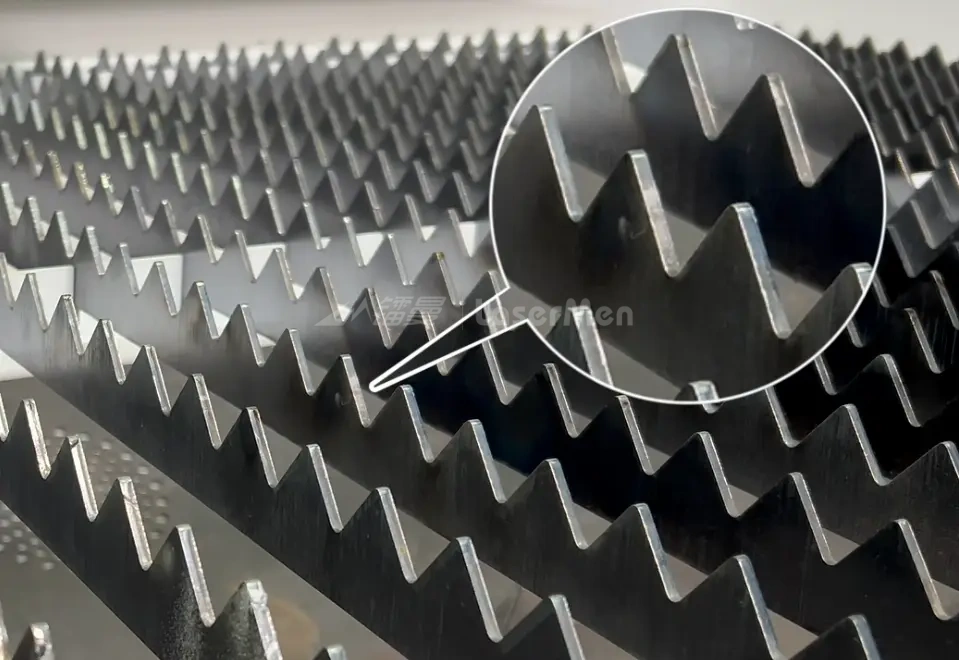

5.The top edges of the groove are rounded and smoothed, providing more stable support and preventing scratches on the surface of the material being cut.
Machine Application
fiber co2 laser cutting machine---Application industries:
Used in sheet metal processing, aviation, aerospace, electronics, electrical appliances, subway parts, automobiles, grain machinery, textile machinery, engineering machinery, precision parts, ships, metallurgical equipment, elevators, household appliance, craft giftsm tool processing, decoration, advertising, metal processing, kitchen processing and other manufacturing and processing industries.Used in nonmetal processing, Advertising signs, craft gifts, crystal jewelry, paper-cutting crafts, architectural models, lighting, printing and packaging, electronic appliances, photo frame making, clothing leather and other industries.

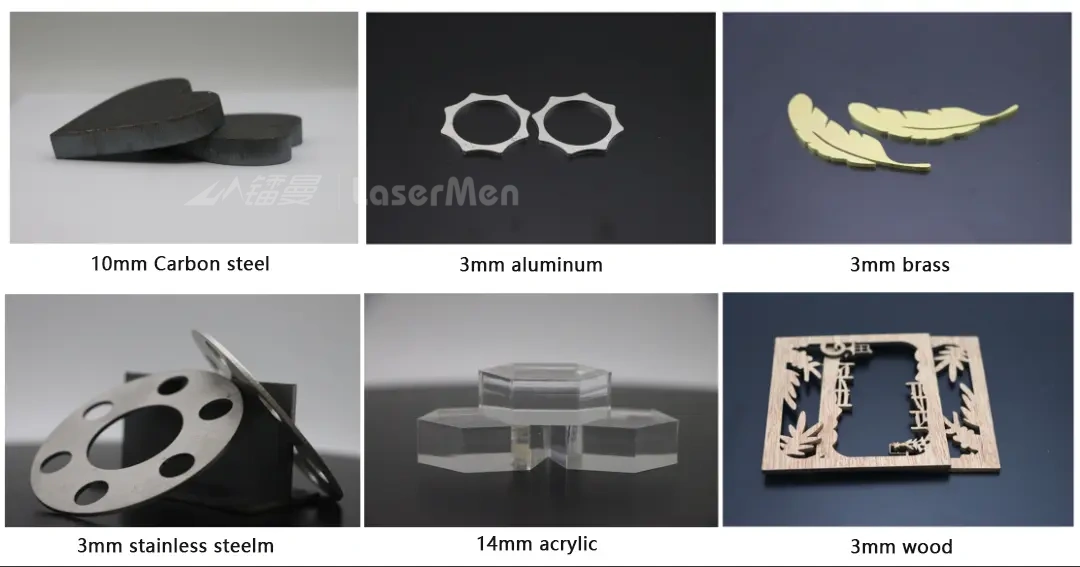

metal and nonmetal laser cutting machine---Application materials:
Stainless steel, carbon steel, alloy steel, silicon steel, spring steel, aluminum, aluminum alloy, galvanized sheet, pickled
sheet, copper, silver, gold, titanium and other metal sheet and pipe cutting.
Wood products, paper, plastic, rubber, acrylic, bamboo, marble, two-color board, glass, wine bottle and other non-metallic materials.
