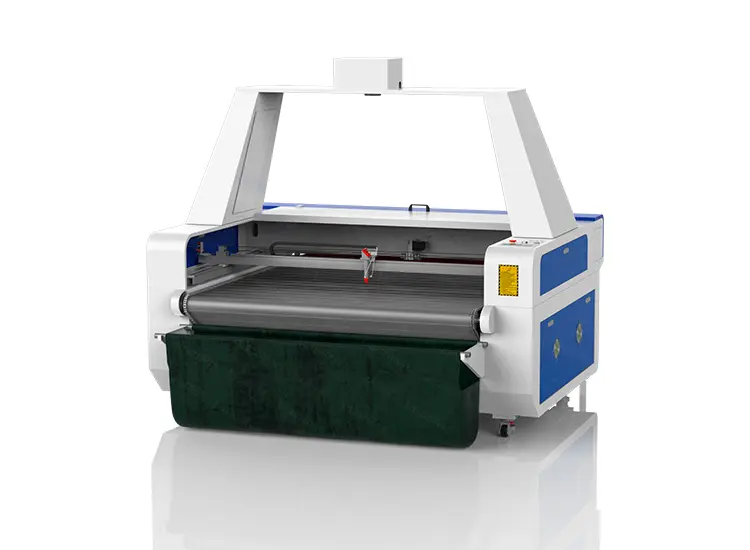

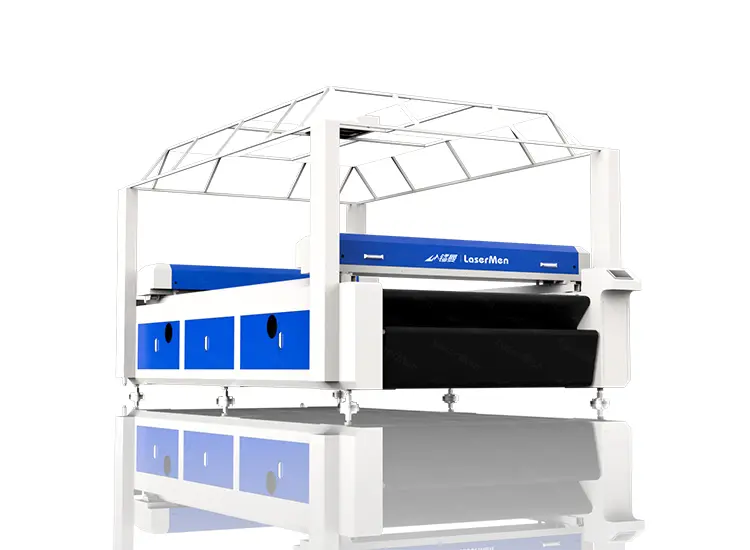

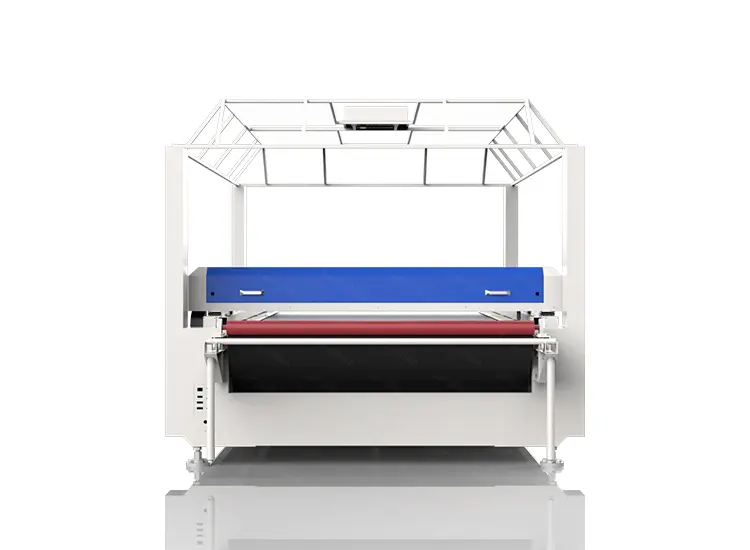

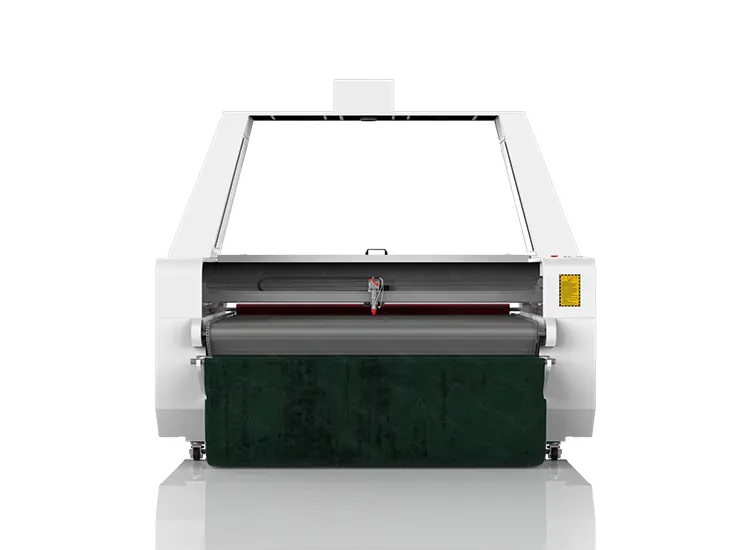

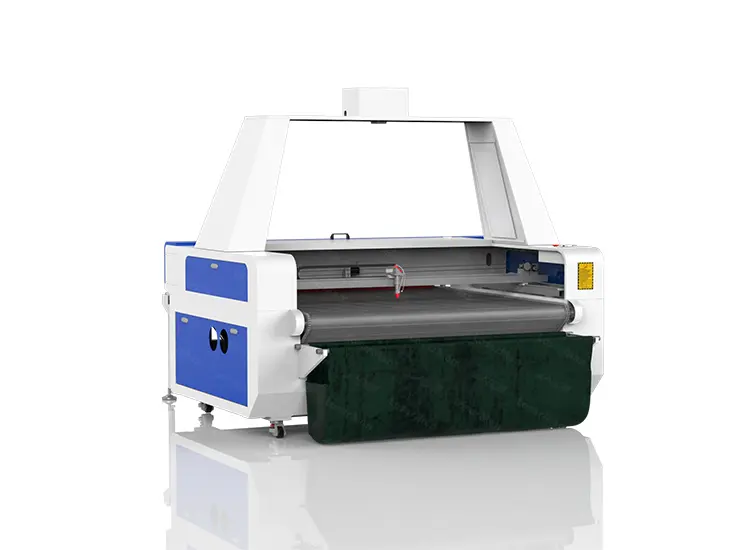

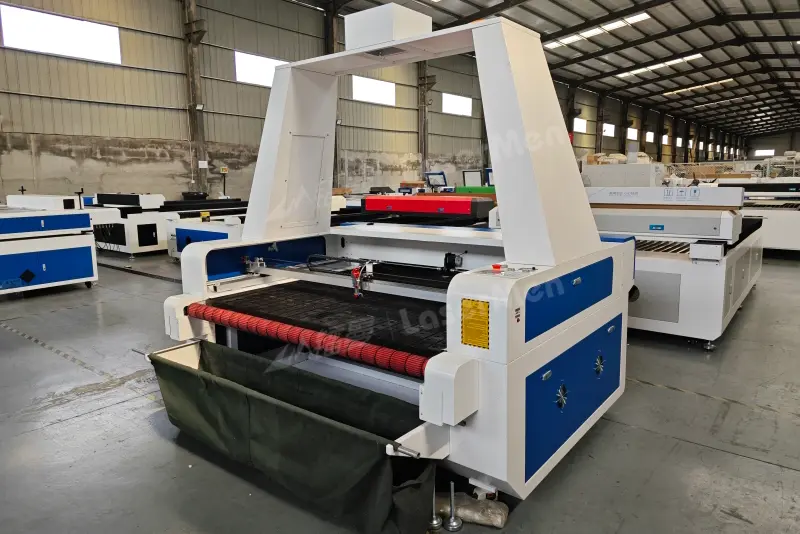

Machine features
Product Description :
1). The auto-feeding function is specially designed for piece goods, such as cloth, fabric,Towel, leather, jeans, embroidery, etc.
2). Widely applied in clothes embroidery industries.
3). Fully automatic camera shooting and positioning system: the pattern is taken into the computer through the vision system.
4).Optimized cutting sequence, saving an average of 10%-20% of working time compared to software design without path optimization.
5).Break-point memory function. Even if power cuts during machine working, when resume working, it continues cutting from the break-point and connects well.
6).Smooth cutting edge, locking by high temperature, no fines or burrs, and improves your product.
Technical parameters
| Model | LM-1610 | LM-1810 | LM-1625 | LM-1825 |
| Laser type | Sealed CO2 glass laser tube, wavelength: 10.6μm | |||
| Laser power | 80W/100W/130W/150W/180W | |||
| Working area | 1600x1000mm | 1800X1000mm | 1600x2500mm | 1800x2500mm |
| Engraving speed | 0-60000mm/min | |||
| Cutting speed | 0-30000mm/min | |||
| Repeating location | ±0.01 | |||
| Machine table | Blade table (alternative: honeycomb table) | |||
| Graphic format supported | *.plt, *.dst, *.dxf, *.bmp, *.dwg, *.ai, *.las, supporting AutoCAD and CorelDraw | |||
| Software supported | CorelDraw, AutoCAD | |||
| Control system | RuiDa DSP Off-line control system, laser power 0~100% adjustable | |||
| Working voltage | Single phase 220V/50Hz (Optional: 220V/60Hz, 110V/60Hz) | |||
Video

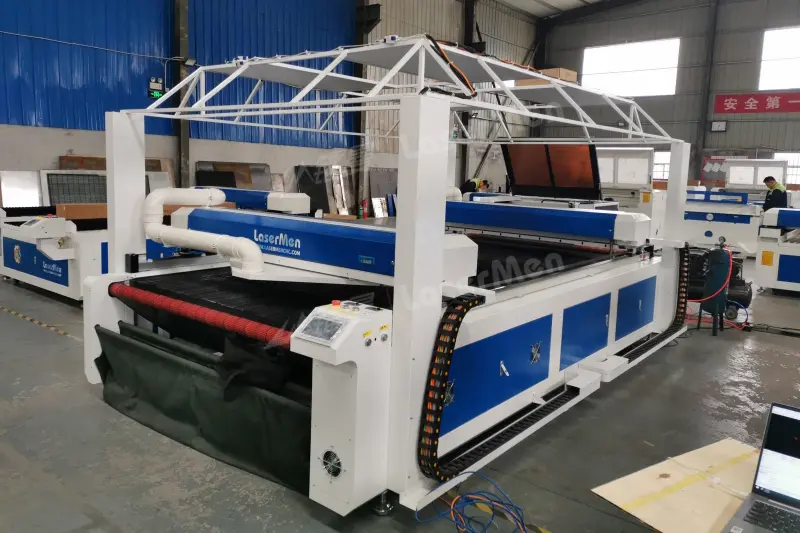

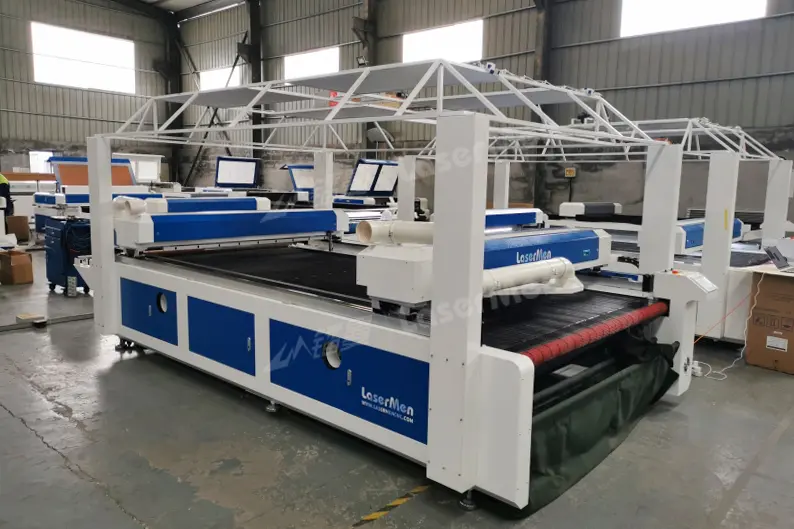

Machine details

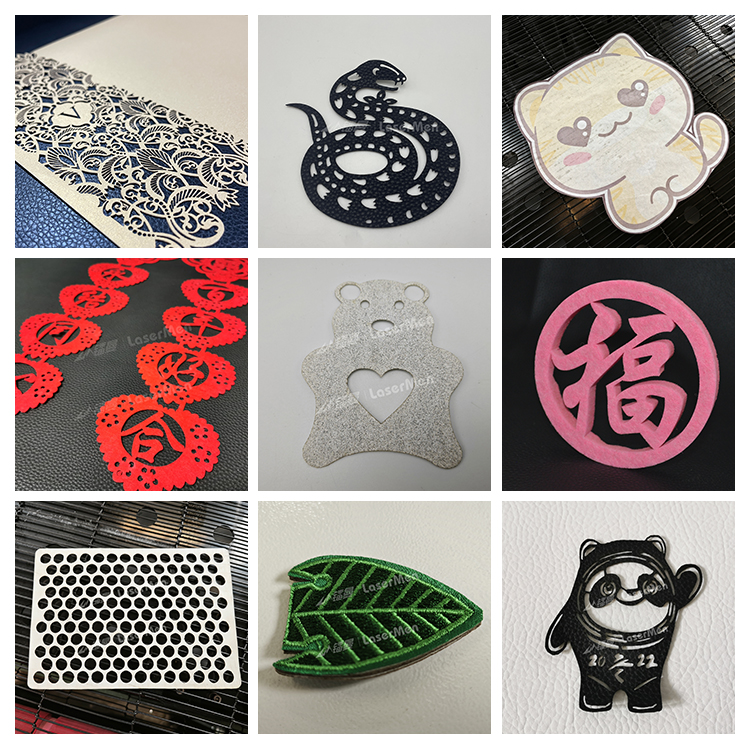

Machine Application
Applicable materials:Cotton cloth, linen cloth, leather, paper, chemical fiber and other textile and garment fabrics.
Application area:
Sofa release, curtain fabrics, carpets, outdoor tents, coated fabrics, tarpaulins, car interiors, home textiles and various textile products personalized customization, etc. Suitable for cutting various flexible soft materials, hollowing out, etc.
