Open type fiber laser cutting machine for metal sheet

Product name: Open type fiber laser cutting machine for metal sheet
Model: LM-1530S / LM-1325S / LM-9013S
Laser power: 750w, 1000w, 1500w, 2000w, 3300w, 4000w
Working range: 1500 x 3000mm / 1300 x 2500mm / 900 x 1300mm
Application: metal cutting

Machine features

Fiber laser cutter as high technology technology, is professional in metal cutting industry, The machine owns more comfortable operation, more stable performance, more durable quality, higher cutting efficiency and wider application scope.

Technical parameters

 Model LM-1530S / LM-1325S / LM-9013S
 Laser type Fiber laser, 1080nm
 Laser power 750W-4000W
 Working area 1500mm x 3000mm / 1300 x 2500mm / 900 x 1300mm
 Min Line width 0.1mm
 Positioning accuracy 0.01mm
 Max. Cutting speed 60m/min
 Transmission type Precision dual gear rack transmission
 Driving system Serve motors
 Cutting thickness Depending on laser power and material
 Assisting gas Compressed air, oxygen and nitrogen
 Cooling mode Industrial circulation water chiller
 Visual positioning Red dot
 Machine weight Net 2500kgs
 Working voltage 220V 2 phase / 380V 3 phase

Fiber laser source cutting capacity
Material Maximum cutting thickness (mm) Remark
  750W/800W 1000W 1500W 2000W 3300W 4000W The thickness is each fiber source maximum cutting thickness,
if your main materials is up to maximum thickness,
please choose more higher power source.
Stainless steel 4 4 5 8 10 10
Carbon steel 8 10 14 18 20 22
Galvanized sheet 4 4 5 8 10 10
Aluminum 2 3 4 5 6 8
Brass 2 3 4 5 6 8



Video

Machine details

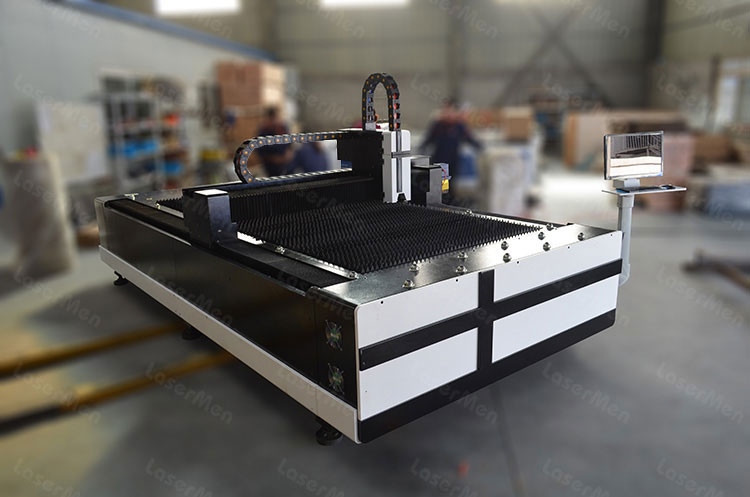

fiber laser cutting machine in factory
machine view of fiber laser cutting machine

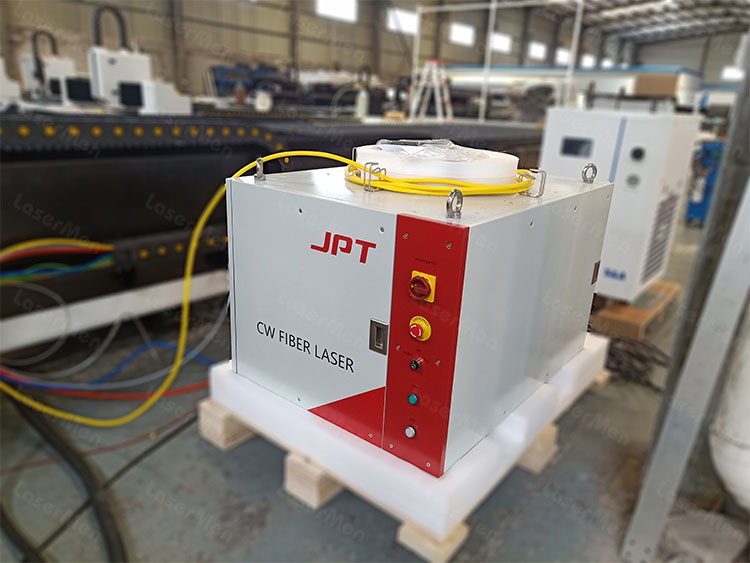

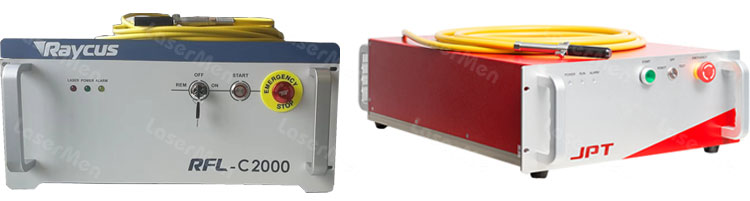

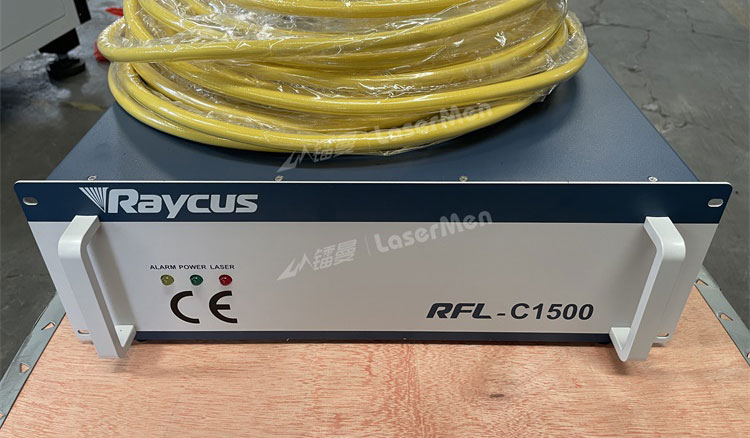

1.Top brand Raycus/JPT/IPG/Nlight fiber laser source 750W - 4000W: The power can be increased with the technology improved.
laser source of fiber laser cutting machine

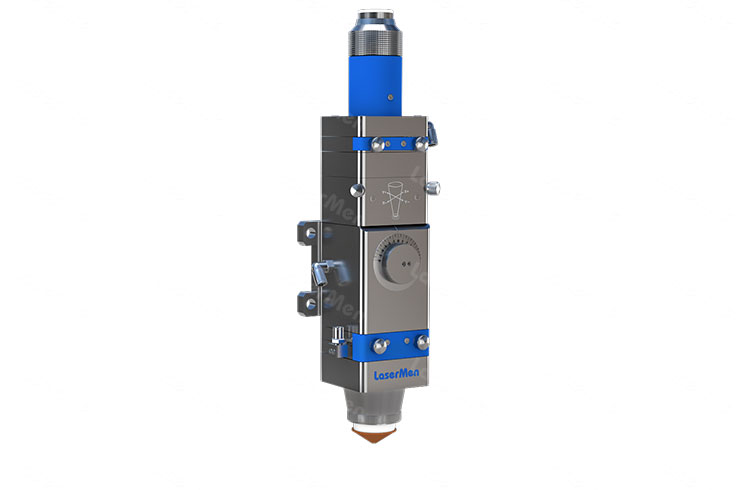

2. Professional laser cutting head with auto following system.
high speed fiber laser cutting head

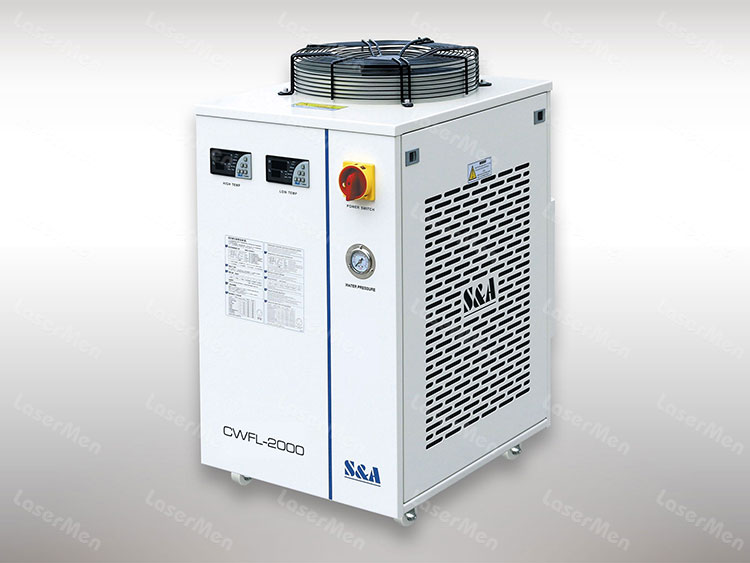

3. Water chiller, it is able to cool the fiber laser and optic lenses at the same time.
Industrial water chiller for fiber laser cutting machine

4. CypCut laser cutting control system, include control board, height control and machine software in English. Supporting files: DXF, PLT, AI, LXD, etc. Drawing in the software is also ok.
Cypcut laser cutting control system

5. Gear rack and linear rail transmission, which ensures machine high speed movement, precision and stability as well
gear rack and linear rail transmission

6. LaserMen fiber laser cutting machine adopts Japanese YASKAWA servo motors and drivers, Japan Shimpo reducer
YASKAWA servo motors and drivers, shimpo reducer
7. Auto lubrication for gear rack and square linear rail transmission
Auto lubrication
8. Exhaust system, Exhaust channel is accessible within the whole machine table range. A high power exhaust fan strongly removes the smells and dusts caused by cutting.
Exhaust system
Packing
Packing


Machine Application

Professional used to cut sheet metal like carbon/mild steel, stainless steel, aluminum alloy, galvanized sheet, electrolytic plate, silicon steel, titanium alloy, aluminum zinc plate, etc.
fiber laser cutting machine sample
