Precision fiber metal laser cutting machine

Product name: Precision fiber metal laser cutting machine
Model: LM-6060S
Laser power: 800W / 1000W
Working range: 600 x 600mm
Application: Machine is suitable for ultra precision cutting, such as carbon steel, stainless steel, galvanized sheet, aluminum alloy, titanium alloy, gold, silver, aluminum, brass, copper and tight sheet metal fittings, etc

Machine features

The precision fiber metal laser cutting machine adopts ultra-high precision linear motor module, compact structure and low power loss. Without mechanical contact, friction force is smaller. Smooth movement, high position accuracy and re-positioning accuracy, higher speed and acceleration. Fast reaction speed, high sensitivity, excellent follow-up performance, safe and reliable, long service life, low motion noise.

Technical parameters

 Model LM-6060S
 Laser type Fiber laser, 1080nm
 Laser power 800W / 1000W
 Working area 600 x 600 mm
 Min Line width 0.1mm
 Positioning accuracy 0.03mm
 Max. Cutting speed 30m/min
 Transmission type Precision dual ball screw transmission
 Driving system Serve motors
 Cutting thickness Depending on laser power and material
 Assisting gas Compressed air, oxygen and nitrogen
 Cooling mode Industrial circulation water chiller
 Visual positioning Red dot
 Working voltage 220V/380V
 Machine dimensions/Net Weight 1800*1550*1840mm/1500kg
 Packing dimensions/Gross Weight 2550*1550*2000mm/1700kg

Video

Machine details

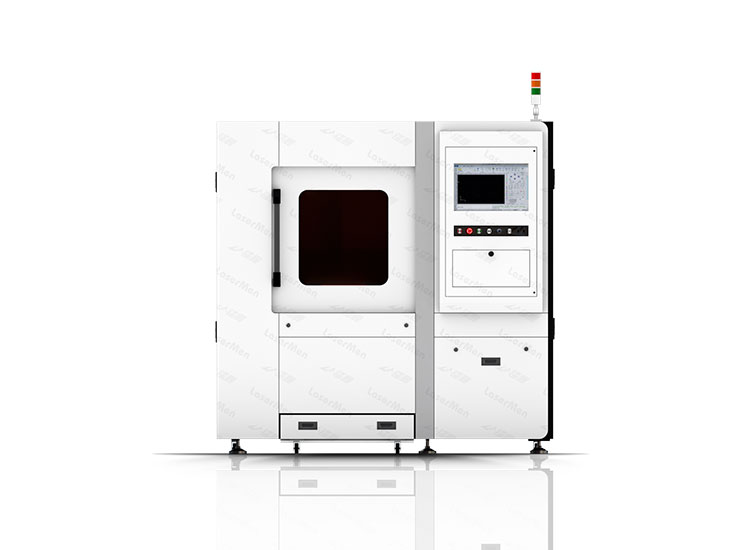

precision fiber laser cutting machine

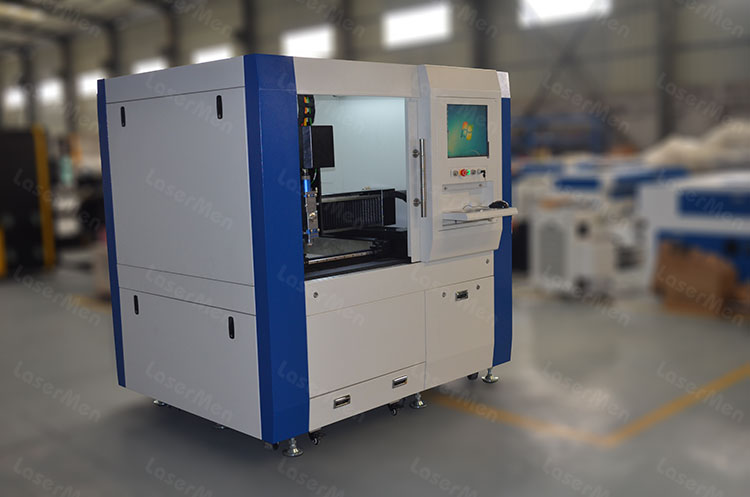

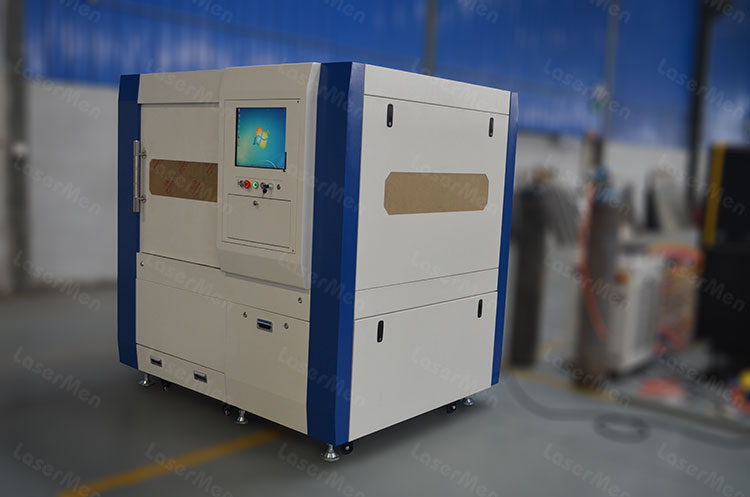

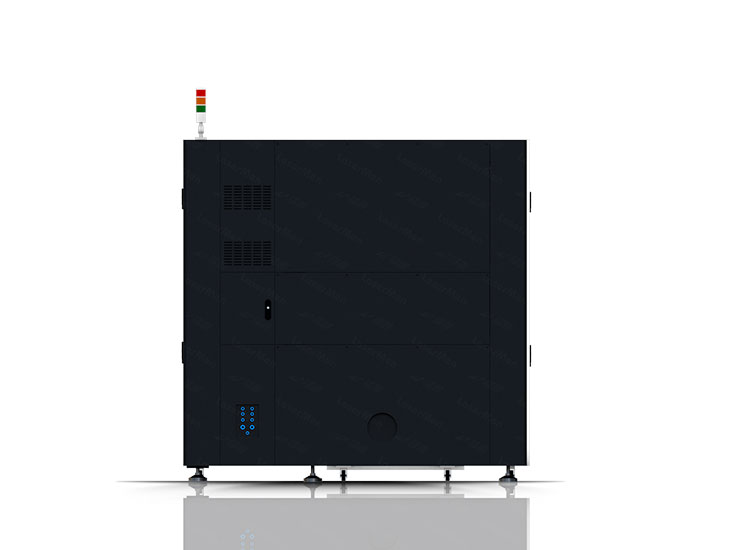

Machine view of precision fiber laser cutting machine
Machine details:

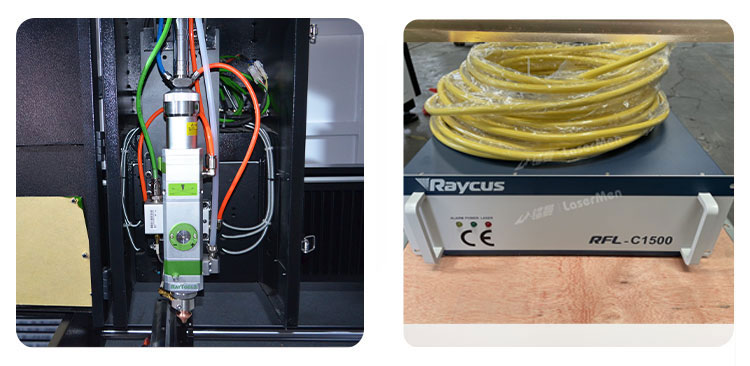

1. Top brand Raycus/JPT fiber laser source 800W / 1000W
2. Professional laser cutting head with auto following system
3. Water chiller, it is able to cool the fiber laser and optic lenses at the same time
4. Adopting marble countertop, high precision, low linear expansion coefficient; no rust, easy to maintenance

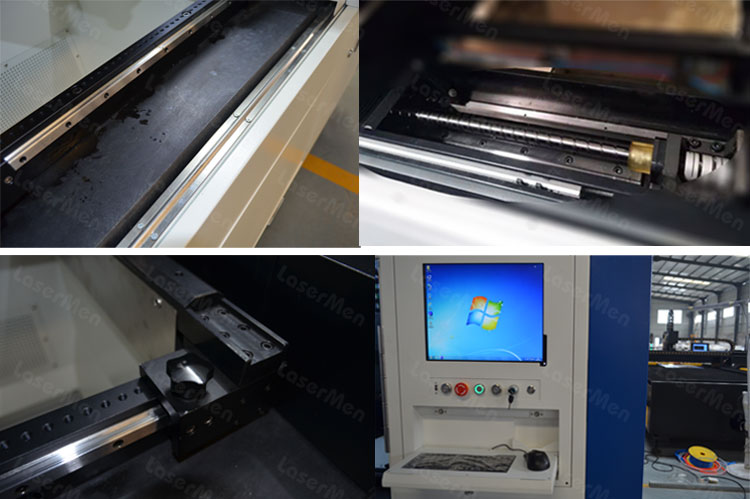

Detailed image of precision fiber laser cutting machine
5. Air jig makes position more accurate, cutting parts use air jig to fix cutting materials and improve position accuracy. Suitable for thin plate, the thinnest plate it can hold is 0.3mm plate, improving the machining precision.
6. CypCut laser cutting control system, include control board , height control and machine software in English. Supporting files: DXF, PLT, AI, LXD, etc. Drawing in the software is also ok
7. Ball screw and linear rail transmission, which ensures machine high speed movement, precision and stability as well
8. Japanese YASKAWA servo motors and drivers

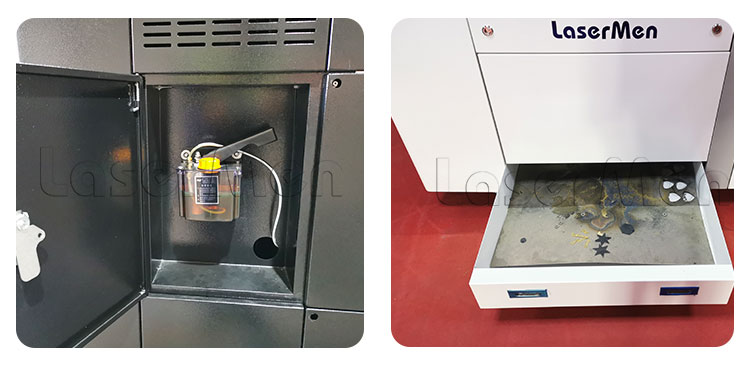

9. Auto lubrication

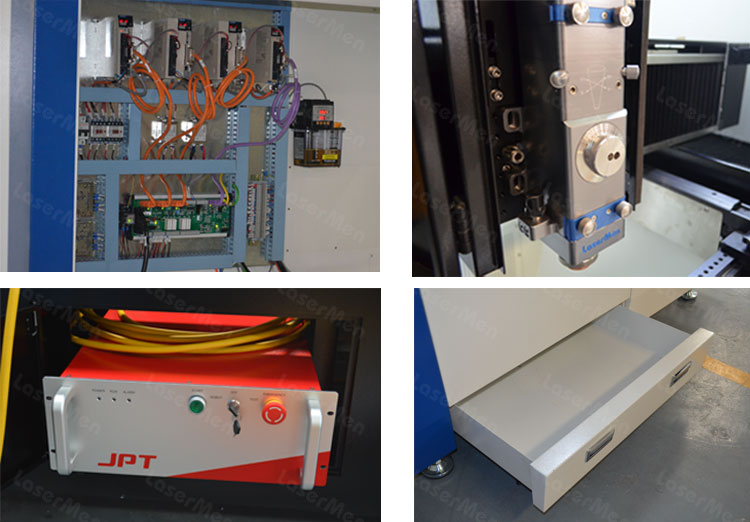

Precision fiber laser cutting machine parts

Machine Application

The equipment meets the parts processing requirements of most industries, working accuracy is stable. At present, laser cutting machines have been widely used in electronics, electrical, mechanical hardware, new energy lithium, packaging, solar, LED, automotive and other industries.
precision fiber laser cutting machine sample
