Home > laser machines > Fiber laser cutting machine

Economic Type Fiber Laser Cutting Machine With Low Price

Product name: Economic Type Fiber Laser Cutting Machine With Low Price
Model: LM-1530SF
Laser power: 1000W, 1500W, 2000W, 3000w
Working range: 1500 x 3000mm
Application: Professional used to cut thin sheet metal like carbon/mild steel, stainless steel, aluminum alloy, galvanized sheet, electrolytic plate, silicon steel, titanium alloy, aluminum zinc plate, etc

Machine features

1). High-performance laser device associated with stable operation system enables optimal cutting effects.
2). Perfect cooling, lubrication and dedusting systems ensure stable, efficient and durable performance of the whole machine.
3). Automatic height-adjustment performance keeps constant focal length and stable cutting quality.
4). Gantry structure and inblock aluminum cast cross beam make the device highly rigid, stable and antiknock.
5). It could ut mental in various materials and realize excellent and stable cutting effects.

Technical parameters

 Model LM-1530SF
 Laser type Fiber laser, 1080nm
 Laser power 1000W, 1500W, 2000W, 3000w
 Working area 1500 x 3000mm
 Min Line width 0.1mm
 Positioning accuracy 0.01mm
 Max. Cutting speed 60m/min
 Transmission type Dual gear rack transmission
 Driving system Serve motors
 Cutting thickness Depending on laser power and material
 Assisting gas Compressed air, oxygen and nitrogen
 Cooling mode Industrial circulation water chiller
 Working voltage 220V/380V

Video

Machine details

Economic fiber laser cutting machine is the best cutting tool for thin sheet metal cutting (stainless steel, aluminum alloy, galvanized iron, silicon steel) of as custom and personalized metal signs, metal crafts, metal arts, metal logos, metal tags, metal letters, metal words. Now the affordable fiber laser cutter for sale at a low price, with the best fiber laser cutting system service and support.
LM-1530SF fiber laser cutting machine
LM-1530SF metal sheet fiber laser cutting machine

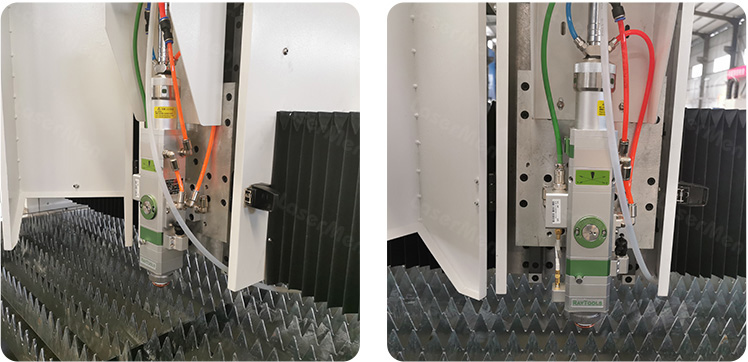

Raytools fiber laser cutting head
High speed laser cutting head for thin metal cutting, such as stainless steel, carbon steel, brass, aluminum etc.
fiber laser cutting machine 1500w raycus laser source
Laser source: 1000w / 1500w / 2000w / 3000w can be selected

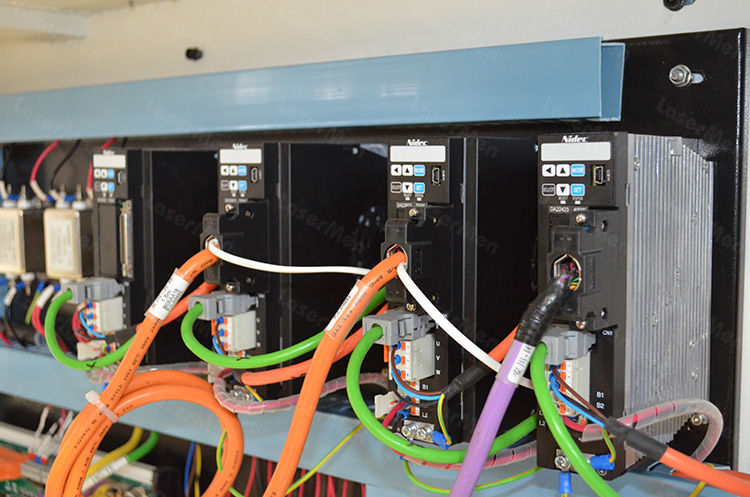

Servo motors and drivers
Servo motors and drivers

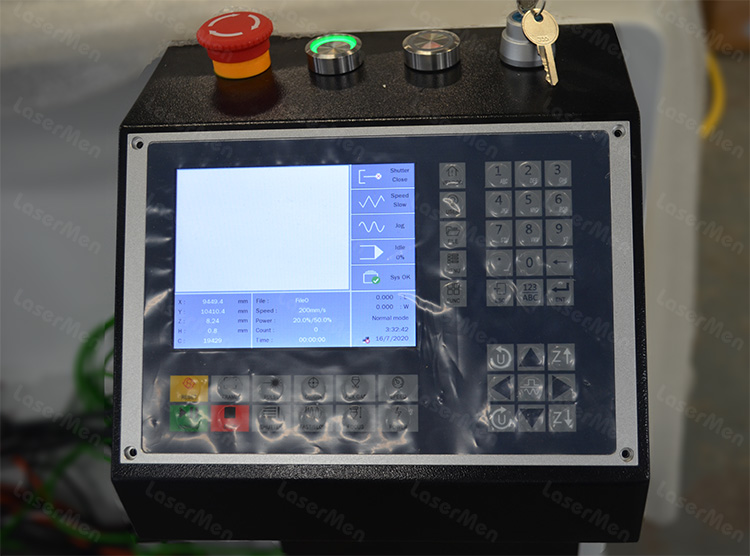

RuiDa controller
RuiDa off-line control system, easy to operate

Machine Application

Application Materials:
Fiber Laser Cutting Equipment is suitable for metal cutting like Stainless Steel Sheet, Mild Steel Plate, Carbon Steel Sheet, Alloy Steel Plate, Spring steel Sheet, Iron Plate, Galvanized Iron, Galvanized Sheet, Aluminum Plate, Copper Sheet, Brass Sheet, Bronze Plate, Gold Plate, Silver Plate, Titanium Plate, Metal Sheet ect.

Application Industries:
CNC Fiber Laser Cutting Machines are widely used in manufacture Billboard, Signs, Advertising, Signage, Metal Letters, LED Letters, Kitchen Ware, Advertising Letters, Sheet Metal Processing, Metals Components and Parts, Ironware, Chassis, Racks & Cabinets Processing, Metal crafts, metal art ware, elevator panel cutting, hardware, auto parts, Glasses Frame, Electronic Parts, Nameplates, etc.

fiber laser cutting samples
fiber laser cutting samples
