Machine features
1. High Cleaning EfficiencyLaser cleaning utilizes concentrated energy and high single-point energy, resulting in fast cleaning speeds and significantly higher efficiency compared to traditional mechanical/chemical cleaning methods. The 500W and 1000W models, in particular, enable continuous and rapid cleaning, significantly increasing productivity.
2. Non-Contact Cleaning
Laser cleaning is a non-contact process, requiring no mechanical friction or chemical solvents. It does not damage the substrate surface, making it suitable for demanding applications such as precision equipment, molds, and metal surface treatment.
3. Environmentally Friendly and Pollution-Free
Unlike methods such as pickling and sandblasting, laser cleaning requires no chemical agents, produces less dust, and is more environmentally friendly and safer, meeting modern factory environmental standards.
4. Adjustable Parameters and Strong Adaptability
The parameters of the pulsed laser are adjustable, allowing for customized cleaning solutions based on different materials and types of contaminants, resulting in greater flexibility and efficiency.
5. Low Maintenance Costs
Laser cleaning machines have a simple structure and fewer wear parts, resulting in significantly lower daily maintenance costs compared to traditional cleaning equipment, making them more economical in the long run.
Technical parameters
| Machine Name | PR-500 Pulsed Handheld laser cleaning machine | PR-1000 Pulsed Handheld laser cleaning machine |
| Laser Power | 500w | 1000w |
| Working Radius | 9m | 9m |
| Total Power | 5kw | 6.5kw |
| Voltage | AC220v±10% | |
| Operating Frequency | 50/60Hz | |
| Cleaning Width | F330: Square: 140mm x 140mm, Single line: 235mm | F420: Square: 170mm x 170mm, Single line: 275mm |
| Machine Dimensions | 710x1030x1000mm | 710x1030x1000mm |
| Machine Weight | 265kg | 265kg |
| Cooling Method | Air cooling | |
| Name | PR-500 | PR-1000 | |
| Cleaning materials | Cleaning efficiency | ||
| Metal rust removal | Stainless steel | 8-15min/m² | 5-8min/m² |
| Carbon steel | |||
| Galvanized steel sheet | |||
| Aluminum | |||
| Non-metal surface cleaning | Some non-metallic materials (wooden boards, hard plastics, corrugated cardboard) | ||
Video
Machine details

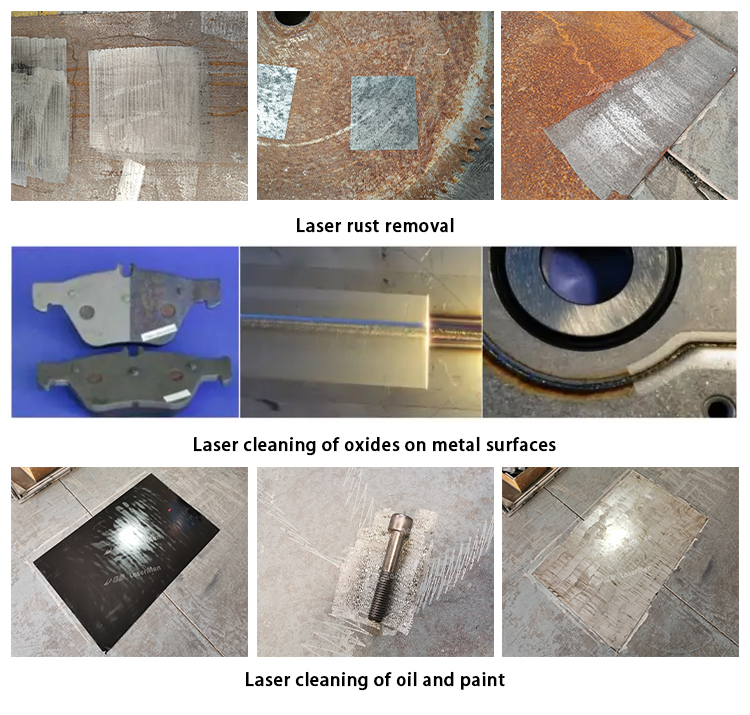

Machine Application
1.It is widely used in the industries such as advertising signs, hardware products, doors, windows, auto parts, craft gift etc.2.It can be used to clean various metallic materials, like carbon steel, stainless steel, titanium, aluminum, brass, etc.
