Machine features
1.Non-contact cleaning, does not damage the parts matrix.
2.Precise cleaning, which can realize selective cleaning of precise location and precise size.
3.No chemical cleaning solution, no consumables, safe and environmentally friendly.
4.Simple operation, automatic cleaning can be realized by hand or with a manipulator.
5.Ergonomic design, greatly reduce the labor intensity of operation.
6.High cleaning efficiency and time saving.
7.The laser cleaning system is stable and requires almost no maintenance.
Technical parameters
| Machine Name | PR-300 Pulsed Handheld laser cleaning machine |
| Laser Power | 300w |
| Working Radius | 5 meters |
| Total Power | 1.2kw |
| Voltage | AC220v±10% |
| Operating Frequency | 50/60Hz |
| Cleaning Width | F254: Square: 145mm x 145mm, Single line: 210mm F330: Square: 180mm x 180mm, Single line: 260mm |
| Machine Dimensions | 350x510x450mm |
| Machine Weight | 33kg |
| Cooling Method | Air cooling |
| Cleaning materials | Cleaning efficiency | |
| Metal rust removal | Stainless steel | 8-15min/m² |
| Carbon steel | ||
| Galvanized steel sheet | ||
| Aluminum | ||

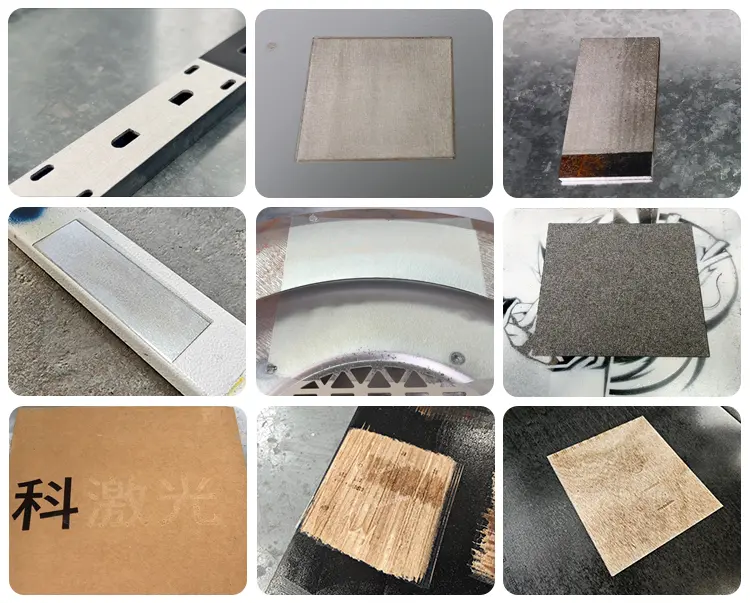

| Non-metal surface cleaning | Some non-metallic materials (wooden boards, hard plastics, corrugated cardboard) | |
Video
Machine details
Machine Application
1.It is widely used in the industries such as advertising signs, hardware products, doors, windows, auto parts, craft gift etc.2.It can be used to clean various metallic materials, like carbon steel, stainless steel, titanium, aluminum, brass, etc.
