5 Functions Available for Standalone Use: Handheld Laser Welding, Built-in Wire Feeding, Handheld Laser Cutting, Weld Seam Cleaning, Energy Storage Battery Welding, Laser Rust Removal.

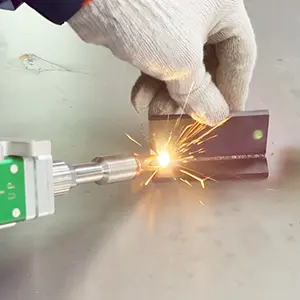

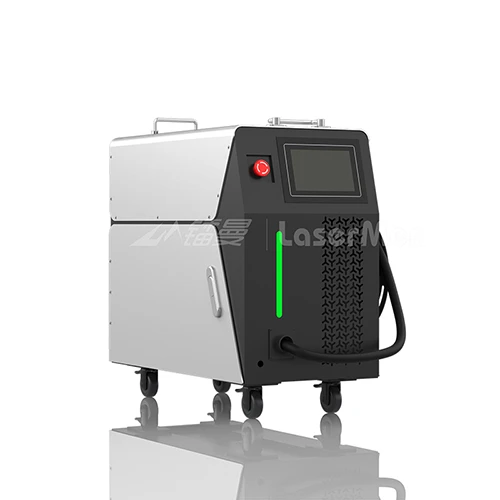

Welds various metals, with built-in wire feeder, easy to move and operate.

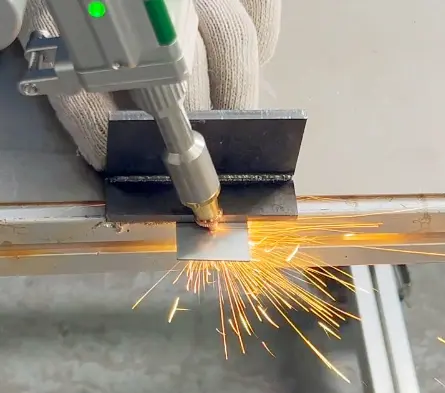

Enables precise cutting of various metals from 0.5mm to 3mm, with easy operation and flexible movement.
It efficiently removes spatter and oxide layers from weld beads for a clean, smooth finish.

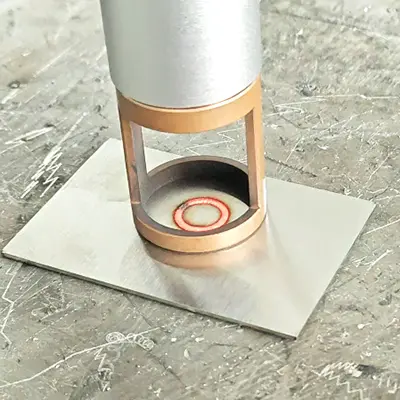

Delivers high-strength, spatter-free welding for new energy battery components with precise control.

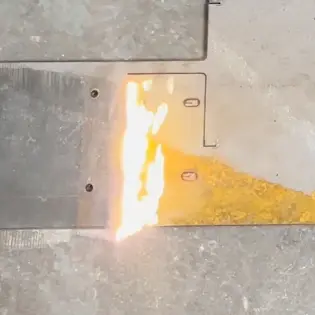

Efficiently removes rust and oxide layers from the surface of various metals without damaging the base material.

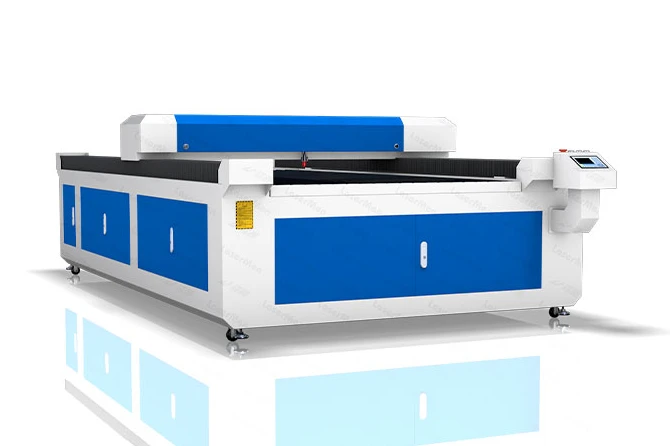

Can independently engrave and cut non-metallic materials. The linear guide is driven by a servo motor, with repeat positioning accuracy of ±0.01mm.

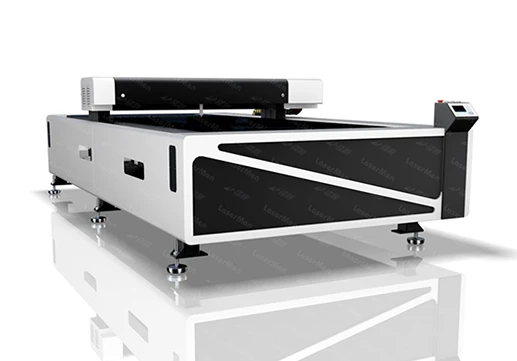

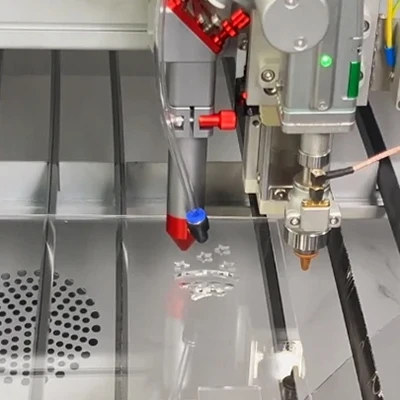

Clean and smooth cutting of non-metallic materials with adjustable cutting speed and power.

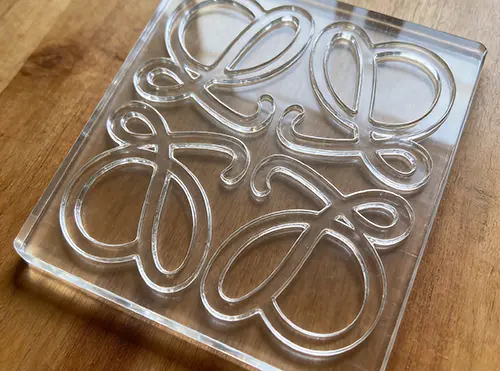

High-precision engraving on wood, acrylic, leather, paper and other non-metallic materials.

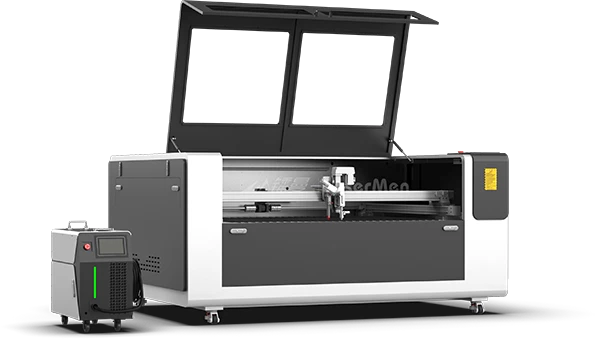

The handheld welding torch is mounted on the X-axis of the CO2 machine to achieve three functions: metal cutting, engraving, and welding.

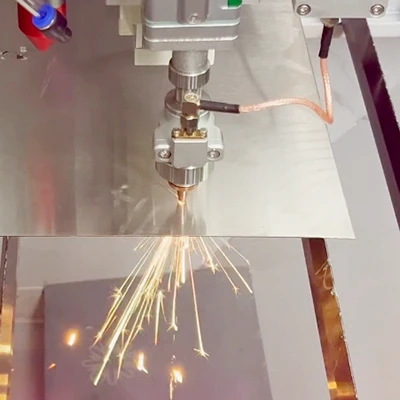

High-precision cutting of various metal materials with smooth kerf and no burrs, suitable for thin to medium thickness metal sheets.

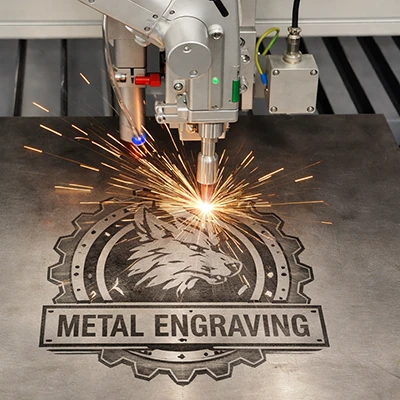

Fine and clear engraving on metal surfaces, supporting complex patterns, text and logo engraving with high resolution.

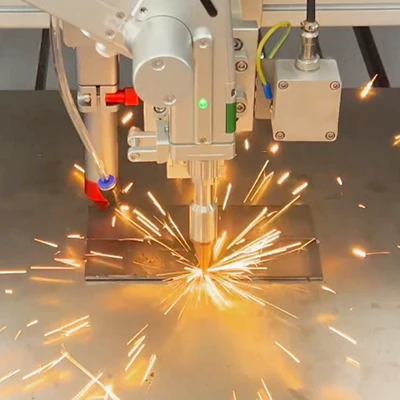

Stable and reliable welding of metal workpieces, with small heat-affected zone and strong weld joints for various metal types.
Cuts, welds and cleans metals (stainless steel, aluminum, carbon steel, silver, titanium, brass, etc.)-removing oil stains & oxide layers. Delivers spatter-free, high-tensile weld seams for 0.5-3mm thicknesses.
Capable of high-precision engraving and cutting on a wide range of materials including wood, leather, acrylic, medium-density fiberboard (MDF), paper, marble, and rubber. Boasts a maximum cutting thickness of 25mm.
| Parameter | Specification |
|---|---|
| CNC laser processing area | X=1300mm, Y=900mm |
| Handheld processing area | 9-meter laser head cable |
| Fiber laser power | 1500W |
| CO2 laser power | 130W |
| Positioning accuracy | ±0.01mm |
| Repeatability | ≤0.01mm |
| Maximum operating speed | 35m/min |
| Maximum acceleration | 0.25G |
| Controller | Offline control |
| Overall weight | 750kg |
| Bare machine dimensions | 2380x1700x1100mm |
| Input voltage | 1-phase 220V 50/60Hz |
| Machine total power | Fiber laser machine 6KW, CO2 laser machine 3.5KW |
