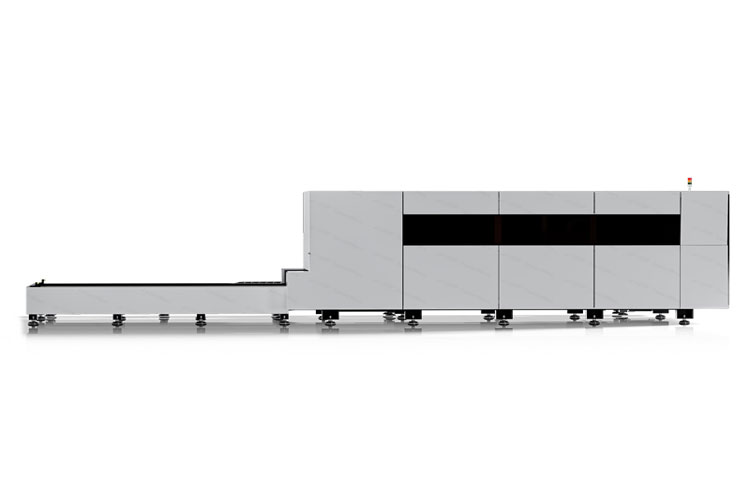

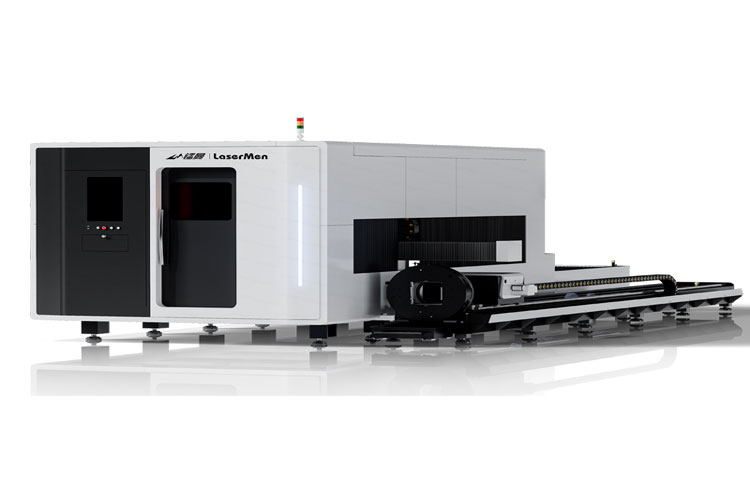

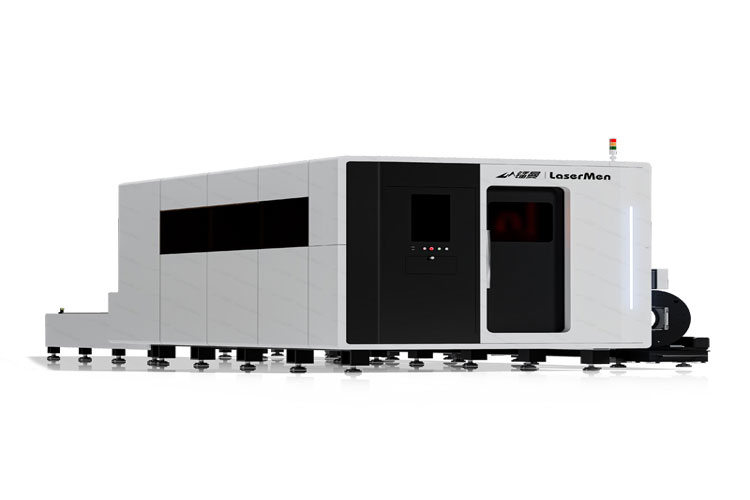

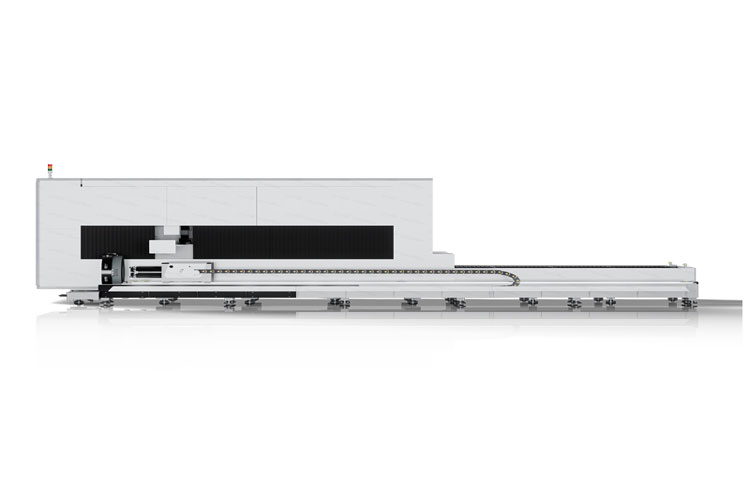

Full enclosed Metal sheet and tube fiber laser cutting machine with exchange tables

Product name: Full enclosed Metal sheet and tube fiber laser cutting machine with exchange tables
Model: LM-1530EHT
Laser power: 1000W / 1500W / 2000W / 3000W / 4000W / 6000W / 8000w
Working range: 1500 x 3000mm
Application: Dual functional fiber laser cutting machine equipped with Tube cutting device, can cut both metal plate and metal tubes

Machine features

1. With a fully enclosed design, it is more safe.
2. The smoke produced by cutting can be removed inside, it's non-polluting and environmentally friendly.
3. Multifunction fiber Laser cutting machine can cut metal plate and metal tube.

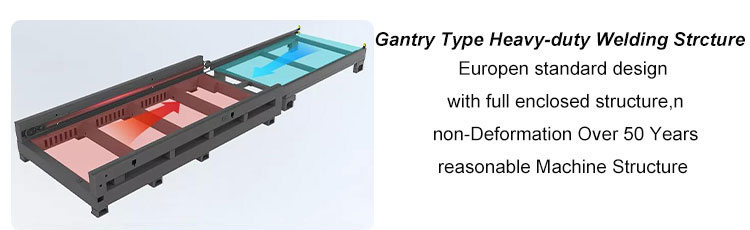

4. With exchanging worktable, easier to loading and unloading the metal sheet.
5. Cost-saving and high performance working, it has many uses and can save the space of more than 50%, which effectively improve productivity.
6. Machine adopts CYPCUT control system, two software (CYPCUT software for metal sheet cutting, Tubepro software for metal tube cutting).

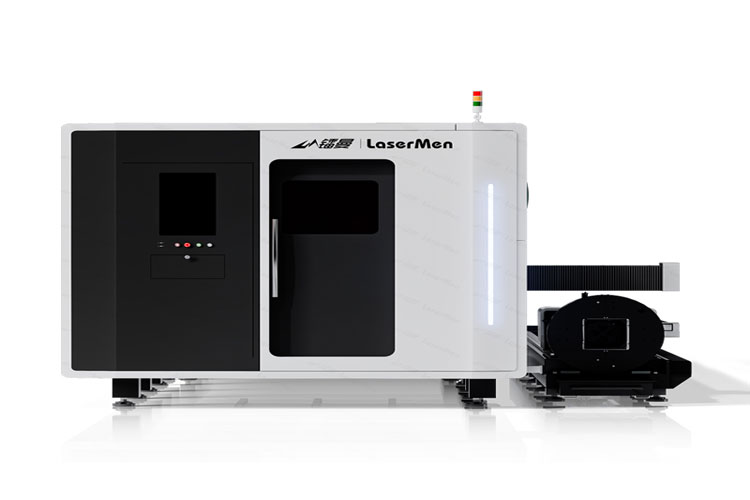

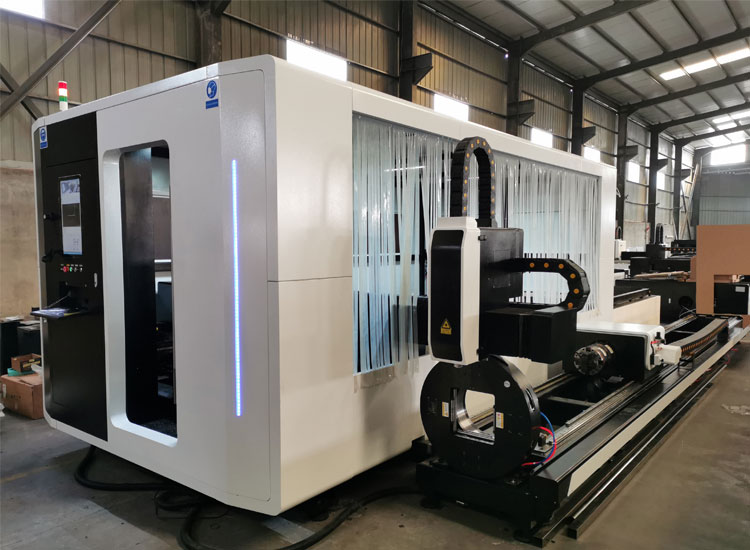

7. The Rotary device can hold up maximum 220mm diameter metal tube, standard tube length is 3 meters or 6 meters, other length also can be customized.

Technical parameters

 Model LM-1530EHT
 Laser type Fiber laser, 1080nm
 Laser power 1000W, 1500W, 2000W, 3000W, 4000W, 6000W, 8000w
 Working area Sheet: 1500mm x 3000mm
Tube:220mm diameter x 3 meters or 6 meters length

 Min Line width 0.1mm
 Positioning accuracy 0.01mm
 Max. Cutting speed 60m/min
 Max acceleration 1.5G
 Transmission type Precision dual gear rack transmission
 Driving system Serve motors
 Cutting thickness Depending on laser power and material
 Assisting gas Compressed air, oxygen and nitrogen
 Cooling mode Industrial circulation water chiller
 Visual positioning Red dot
 Machine weight Net 4500kgs
 Working voltage 3 phase 380V 50HZ/60HZ

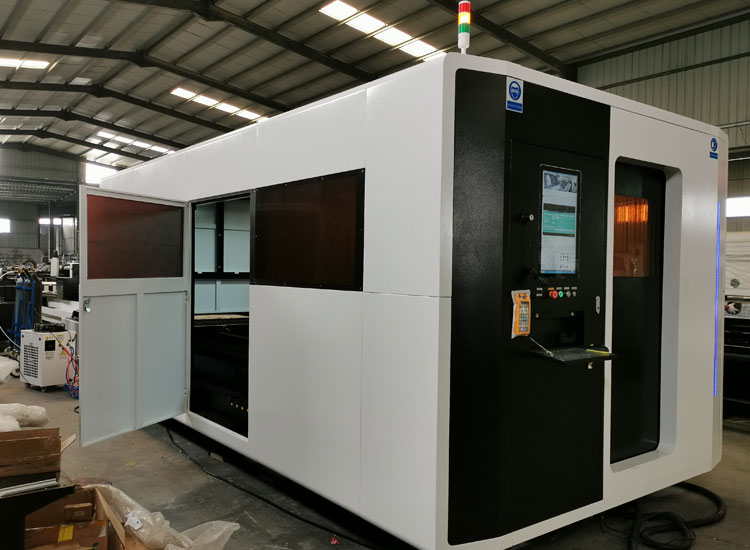

Machine details


Machine Application

Metal Sheet Laser Cutting Machine---Applicable Materials
Carbon steel, stainless steel, alloy steel, spring steel and copper, aluminum, gold,silver and titanium sheets and pipes.

Tube Fiber Laser Cutting Machine---Application Area
Machinery parts electrics, sheet metal fabrication, electrical cabinet, kitchenware, elevator panel, hardware tools, metal
enclosure, advertising sign letters, lighting lamps, metal crafts, decoration, jewelry, medical instruments, automotive parts
and other metal cutting fields.

plate and tube fiber laser cutting machine cutting samples
metal sheet and tube fiber laser cutting samples
