Multifunctional acrylic wood mdf fabric nonmetallic laser cutting engraving machine

Product name: Multifunctional acrylic wood mdf fabric nonmetallic laser cutting engraving machine
Model: LM-6040-2, LM-9060-2, LM-1390-2, LM-1490-2, LM-1610-2
Laser power: 60W, 80W, 90W, 100W, 130W, 150W, 180W, 220W, 300W
Working range: 600x400mm, 900x600mm, 1300x900mm, 1400x900mm, 1600x1000mm
Application: Cutting and engraving acrylic, wood, mdf and other nonmetallic materials

Machine features

1.Multifunctional acrylic wood mdf fabric nonmetallic laser cutting engraving machine is a very popular type machine, this type machine can cut and engrave most nonmetal materials, such as wood acrylic MDF plastic leather plywood etc.
2.Many of our customers order this type machine in batches, so we have stock of this type, and can usually ship within seven days.
3. There are 5 sizes for your choice: 60x40cm, 90x60cm, 130x90cm, 140x90cm, and 160x100cm.
4.Machine power can be selected from 60w to 300w, that depends on your working purpose.
60-100W can do both engraving and cutting. Higher laser power like 130W and above mainly do cutting work.
5.
Some optional functions can be selected, like red dot pointer, motorized up-down table, rotary, auto focus, WIFI provide more convenience and applicable range.
- safety lock: Machine works with door closed, and stops working if door open.
- WIFI: You can send files to machine through WIFI.
- red dot pointer: The red dot previews where you are going to fire the laser.
- auto focus: It adjusts the focal lengh automatically before engraving or cutting.
- motorized up-down Z: Machine table can be lowered and lifted to different height.
- rotary: It assists processing of cylindrical items.

Technical parameters

Model LM-6040-2 LM-9060-2 LM-1390-2 LM-1490-2 LM-1610-2
Laser type CO2 glass laser tube, wavelength 10.6μm, water-cooled
Laser power 60W, 80W, 90W 60W, 80W, 90W, 100W 60W, 80W, 90W, 100W, 130W, 150W, 180W, 220W, 300W
Working area 600x400mm 900x600mm 1300x900mm 1400x900mm 1600x1000mm
Engraving speed 0-1200mm/sec
Cutting speed 0-300mm/sec
Repeating location ±0.01
Transmission type Belt transmission
Driving system Stepper motor
Machine table Blade table (alternative: honeycomb table)
Graphic format supported *.plt, *.dst, *.dxf, *.bmp, *.dwg, *.ai, *.las, supporting AutoCAD and CorelDraw
Software supported CorelDraw, AutoCAD
Control system RuiDa RDC6445G DSP Off-line control system, laser power 0~100% adjustable
Minimum letter size Chinese 2.0x2.0mm, English 1.0x1.0mm
Working voltage Single phase 220V/50Hz (Optional: 220V/60Hz, 110V/60Hz)
Working condition Temperature 0~45 Celsius; Humidity 5%~95% no condensation

CO2 LASER WOKRING CAPACITY
Material Engrave Cut Material Engrave Cut
Wood  Pressboard
Acrylic  Rubber
Fabric  Wood Veneer
Grass   Fiberglass
Coated Metals   Painted Metals
Ceramic   Tile
Delrin Plastic
Cloth Cork
Leather Corian
Marble   Anodized Aluminum
Matte Board Stainless steel
Melamine Brass
Paper Titanium
Mylar Bare Metals

Video

Machine details

1490 co2 laser cutting engraving machine
1610 co2 laser cutting engraving machine
Multifunctional acrylic wood mdf fabric nonmetallic laser cutting engraving machine
Multifunctional acrylic wood mdf fabric nonmetallic laser cutting engraving machine
This series -2 is our hot type CO2 laser engraving cutting machines. This multifunctional CO2 laser machine is used by our customers for different industies and various non-metallic materials, such as wood acrylic MDF plywood leather plastic stone glass etc.
There are 5 sizes for your choice: 60x40cm, 90x60cm, 130x90cm, 140x90cm and 160x100cm.
Laser tube power available for LaserMen series -2 machines: 60W, 80W, 90W, 100W, 130W, 150W, 180W, 220W and 300W. 60-100W machines do both engraving and cutting. The maximum engraving speed can be upto 1200 mm/sec. Machines above 100W mainly cuts. Stronger laser power cuts thicker and faster. You may have a reference here for the machine cutting capacity:
Material Engraving  Cutting  Maximum cutting thickness ( mm )
60w  80w  100w  150w  180w  220w  300w  60w, 80w, 100w can do both engraving and cutting.


150w, 180w, 220w, 300w mainly cuts.



Steel cutting function needs a different cutting head and different control system
Acrylic  8 10 15 25 25 30 30
Wood  6 8 10 18 18 20 23
MDF 4 6 8 12 13 15 15
Plywood 6 8 10 18 18 20 23
Textiles Single layer cutting effect is best
Leather
Paper
PVC
Glass × × × × × × × ×
Stone  × × × × × × × ×
Steel × × × × × × × × ×
And lots of other non-metal materials

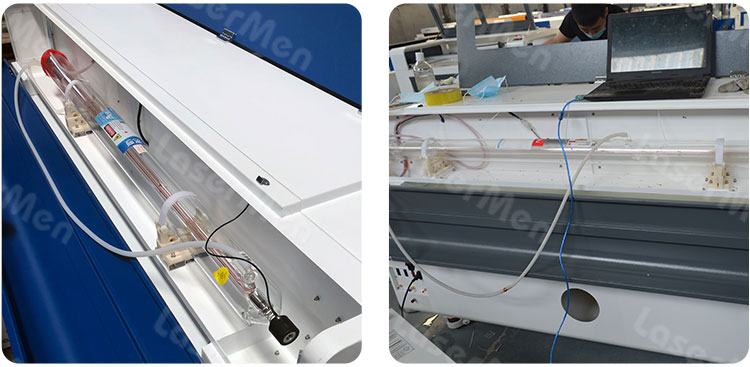

co2 laser tube of Multifunctional laser cutting engraving machine
High quality co2 laser tube with China top brand: Reci or Yongli co2 laser tube.

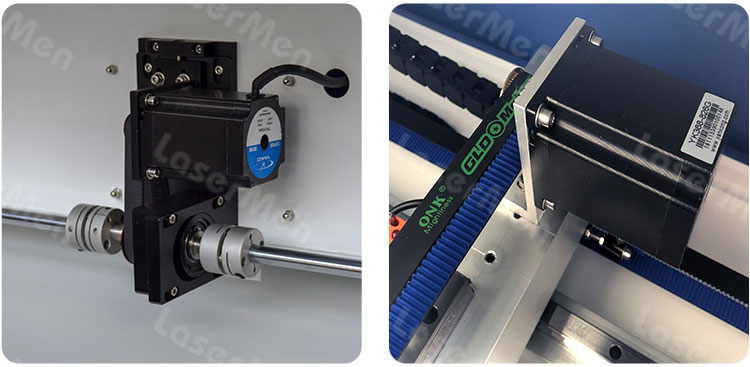

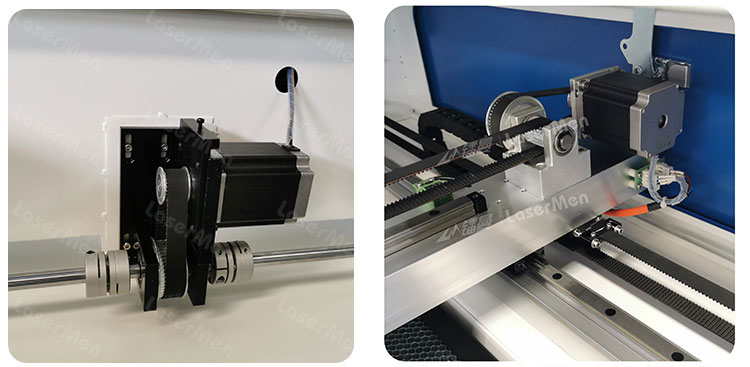

stepper motors of multifunctional laser cutting engraving machine
Stepper motors for X and Y axis.

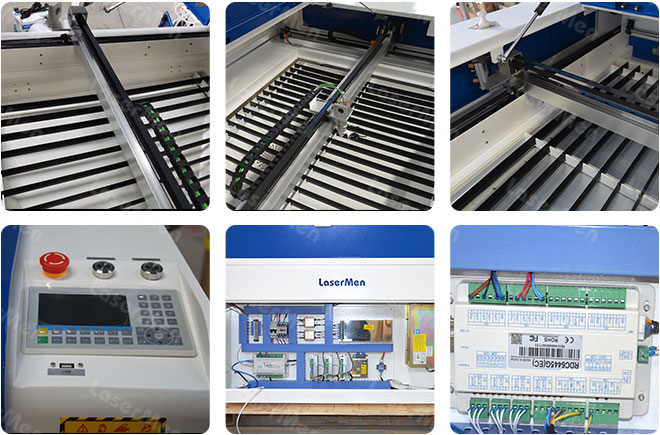

belt transmission and RuiDa controller
Taiwan linear guide rail and belt transmission.
Ruida controller with RDC6445G card and friendly operation display.
Machine working table
Machine table: slats table as standard, and honeycomb table as optional.

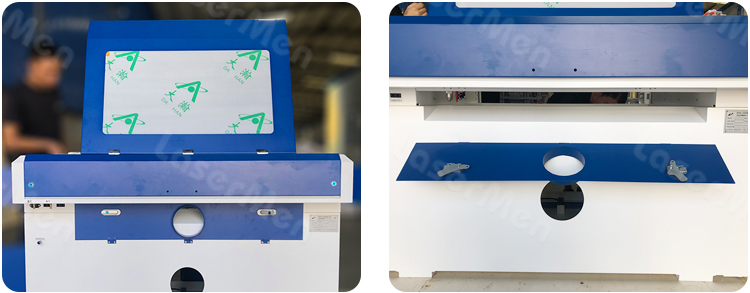

rear opening
Machine has a path for long material to pass through.

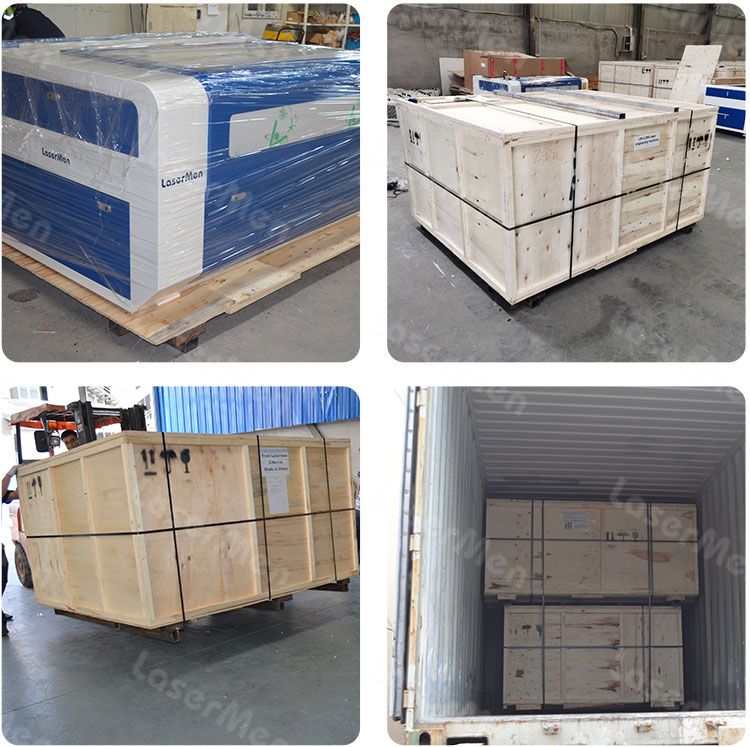

Packing for Multifunctional acrylic wood mdf fabric nonmetallic laser cutting engraving machine

Machine Application

Applicable Materials
Wood products, paper, plastic, rubber, acrylic, bamboo, marble, double-color sheets, glass, wine bottles and other non-metal materials

Application Industries
Advertising signs and boards, arts and crafts, awards and trophies, paper-cutting, architectural model , lights and lamps, printing and packaging, electronic appliances, photo frames and albums, garment leather and other industries.
samples of Multifunctional acrylic wood mdf fabric nonmetallic laser cutting engraving machine
