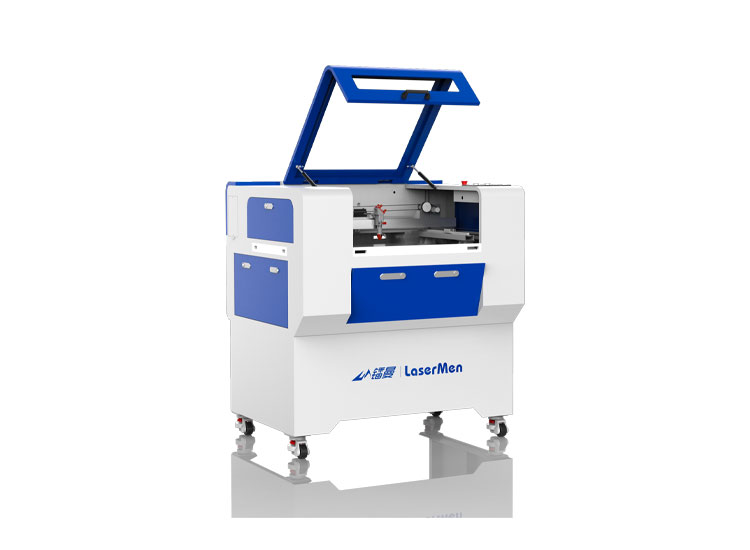

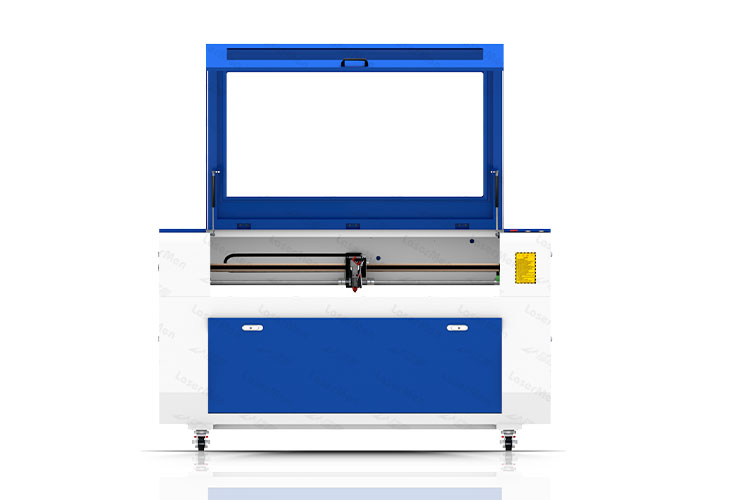

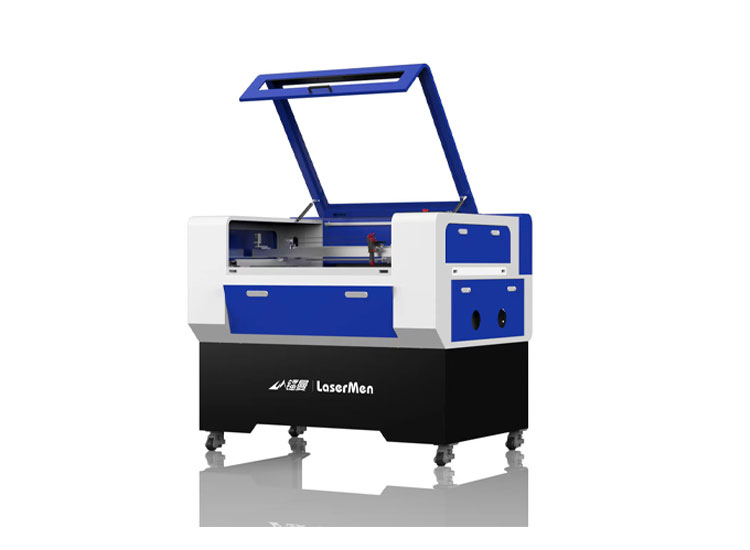

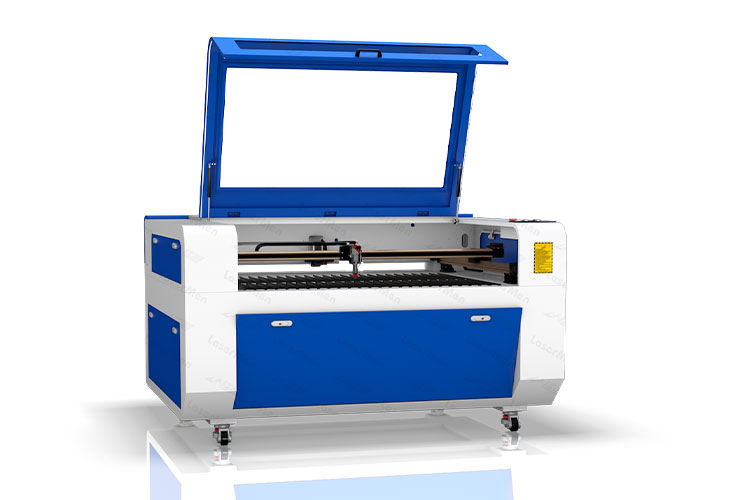

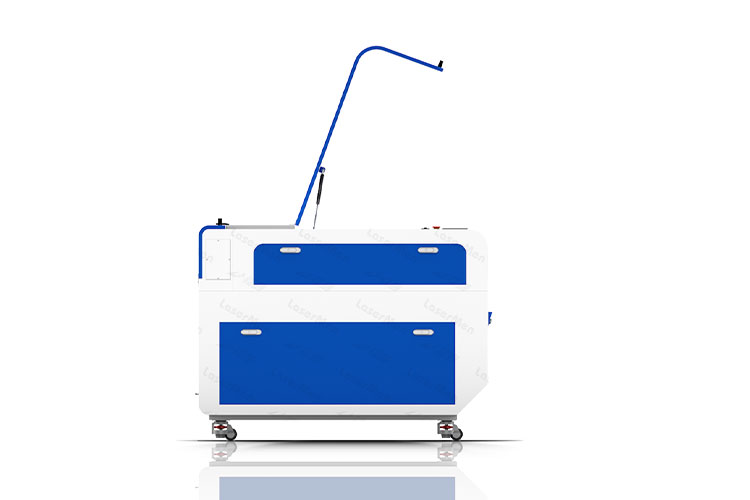

Premium CO2 laser cutting machine for high precision non-metals cutting

Product name: Premium CO2 laser cutting machine for high precision non-metals cutting
Model: LM-6040-XH, LM-9060-XH, LM-1390-XH, LM-1490-XH, LM-1610-XH
Laser power: 60W, 80W, 90W, 100W, 130W, 150W, 180W, 220W, 300W
Working range: 600x400mm, 900x600mm, 1300x900mm, 1400x900mm, 1600x1000mm
Application: Cutting and engraving acrylic, wood, mdf and other nonmetallic materials

Machine features

Premium CO2 laser cutting machine for high precision non-metals cutting
China top brand CO2 glass laser tube, laser power available: 60W, 80W, 100W, 130W, 150W, 180W, 220W, 300W. The machine engraves and cuts non-metals. 60W-100W do both engraving and cutting. 130W and above mainly cuts, also engrave lines.
Machine transmission is integrated guide bar. Rail and belt are integrated. Bigger slider reduces resonance so that cutting precision is better.
High power industrial water cooling system cools the CO2 laser tube and ensure stable laser output.
RDC6445G CNC control system with RDworks laser software support files: DXF, PLT, AI, LXD, BMP, etc. Machine read files from computer, and from USB flash as well.
Precision stepper motors with ratio gear, cutting edge is more smooth.
Air assist during cutting, removes heat and combustible gases from the cutting surface. Oxygen is necessary when cutting steel.
Extractors removes fumes and dusts caused during cutting.
Based on your working requirements, we have some optional functions for your choice:
- red dot, showing position of laser dot on material.

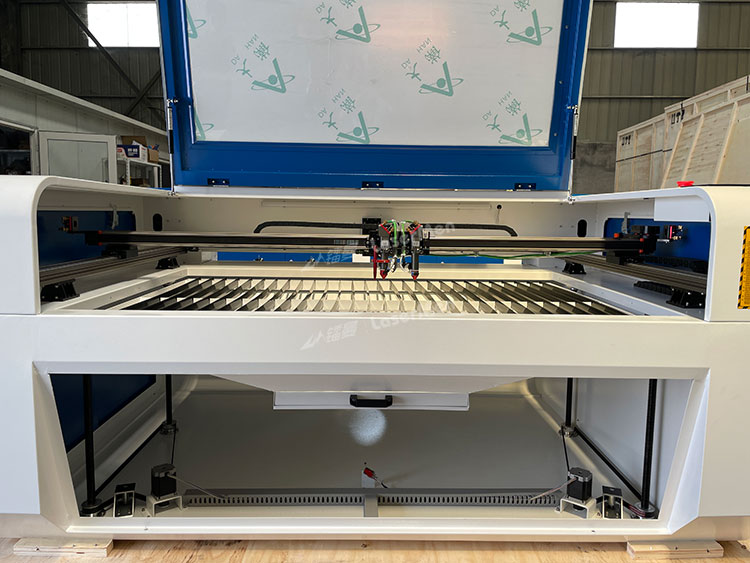

- motorized up-down table, allowing more space for thicker or bigger items processing.
- rotary, assisting cylindrical items processing.
- auto focus, replacing manual focus which improves working efficiency.
- Solenoid valve, allowing air blowing only during cutting.
- Safety lock, stopping machine when you open the machine cover which has more safety for user.
- other functions we can customize upon request.

Technical parameters

Model LM-6040XH LM-9060XH LM-1390XH LM-1490XH LM-1610XH
Laser type CO2 glass laser tube, wavelength 10.6μm, water-cooled
Laser power 60W, 80W, 90W 60W, 80W, 90W, 100W 60W, 80W, 90W, 100W, 130W, 150W, 180W, 220W, 300W
Working area 600x400mm 900x600mm 1300x900mm 1400x900mm 1600x1000mm
Engraving speed  0-1200mm/sec
Cutting Speed  0-300mm/sec
Repeating location ±0.01
Transmission type  integrated guide bar with rail and belt
Driving system Stepper motor

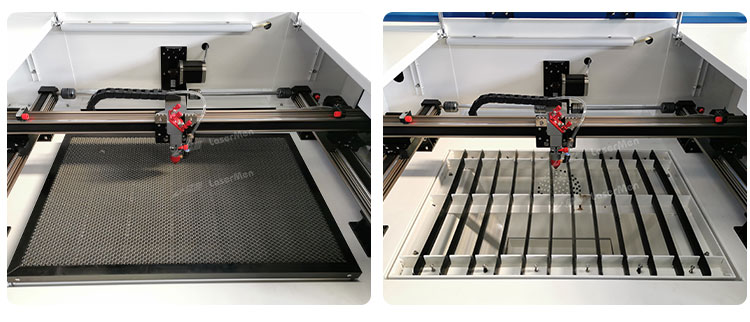

Machine table Blade table (alternative: honeycomb table)
Graphic format supported *.plt, *.dst, *.dxf, *.bmp, *.dwg, *.ai, *.las, supporting AutoCAD and CorelDraw
Software supported CorelDraw, AutoCAD
Control system RuiDa RDC6445G DSP Off-line control system, laser power 0~100% adjustable
Minimum letter size Chinese 2.0x2.0mm, English 1.0x1.0mm
Working voltage Single phase 220V/50Hz (Optional: 220V/60Hz, 110V/60Hz)
Working condition Temperature 0~45 Celsius; Humidity 5%~95% no condensation

CO2 LASER WOKRING CAPACITY
Material Engrave Cut Material Engrave Cut
Wood  Pressboard
Acrylic  Rubber
Fabric  Wood Veneer
Grass   Fiberglass
Coated Metals   Painted Metals
Ceramic   Tile
Delrin Plastic
Cloth Cork
Leather Corian
Marble   Anodized Aluminum
Matte Board Stainless steel
Melamine Brass
Paper Titanium
Mylar Bare Metals



Video

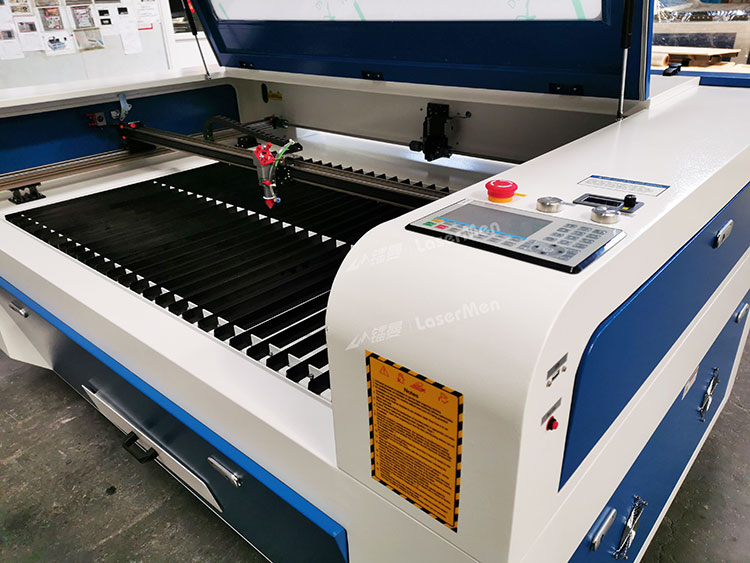

Machine details

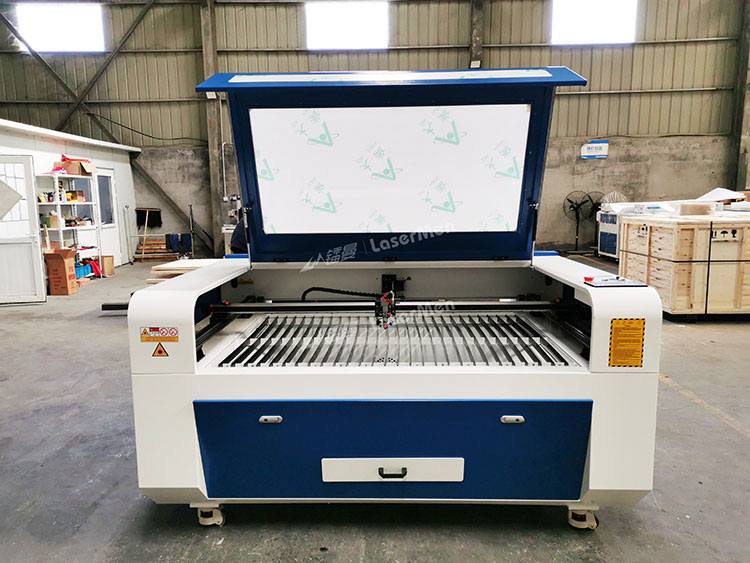

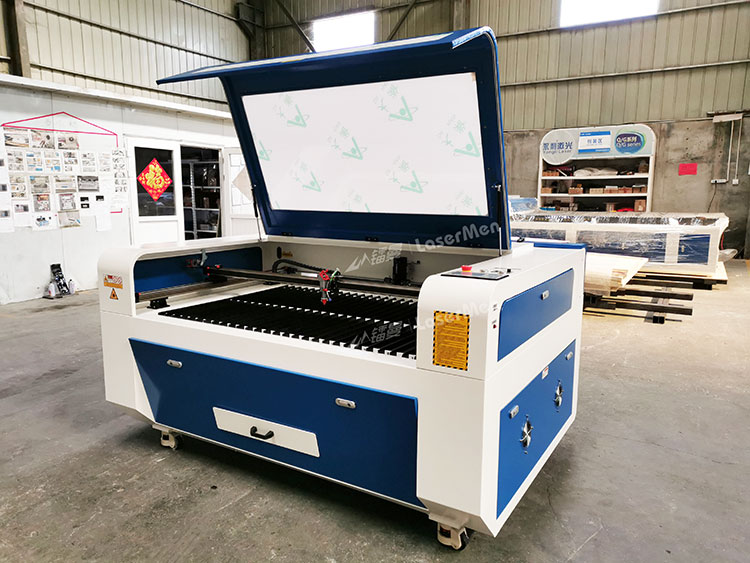

Premium CO2 laser cutting machine for high precision non-metals cutting
Machine with special transmission which is integrated guide bar. Rail and belt are integrated. Bigger slider reduces resonance so that cutting precision is better.
60x40cm, 90x60cm, 130x90cm, 140x90cm and 160x100cm there 5 size can be selected.
This series -XH is a precision co2 laser cutting engraving machine. It is used by our customers for different industies and various non-metallic materials, such as wood acrylic MDF plywood leather plastic stone glass etc.
Laser tube power available for LaserMen series -XH machines: 60W, 80W, 90W, 100W, 130W, 150W, 180W, 220W and 300W. 60-100W machines do both engraving and cutting. The maximum engraving speed can be upto 1200 mm/sec. Machines above 100W mainly cuts. Stronger laser power cuts thicker and faster. You may have a reference here for the machine cutting capacity:
Materials  Engraving  Cutting  Maximum cutting thickness ( mm )
60W  80W  100W  150W  180W  220W  300W  60w, 80w, 100w can do both engraving and cutting.





150w, 180w, 220w, 300w mainly cuts.





Steel cutting function needs a different cutting head and different control system
Acrylic 8 10 15 25 25 30 30
Wood 6 8 10 18 18 20 23
MDF 4 6 8 12 13 15 15
Plywood 6 8 10 18 18 20 23
Textiles Single layer cutting effect is best
Leather
Paper
PVC
Glass × × × × × × × ×
Stone  × × × × × × × ×
Steel × × × × × × × × ×
And lots of other non-metal materials

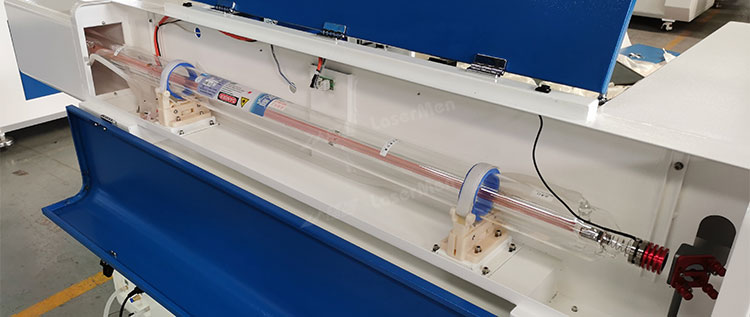

China top brand Yongli or Reci co2 laser tube. Laser tube power: 60w, 80w, 60W, 80W, 90W, 100W, 130W, 150W, 180W, 220W and 300W.

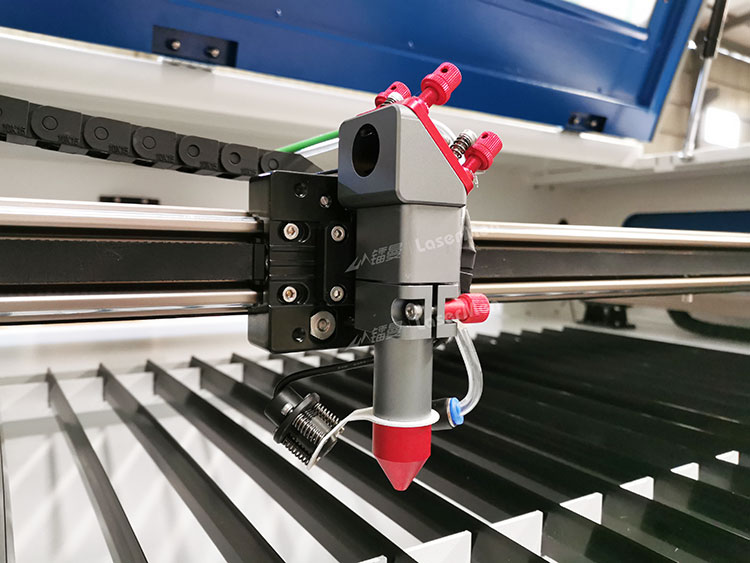

high speed laser head for cutting and engraving

high speed laser head for cutting and engraving nonmetals

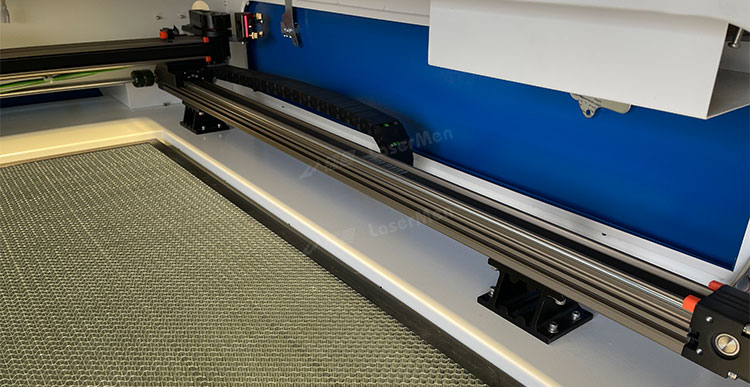

transmission system of premium co2 laser machine

Integrated compact speedy module guide system, with big sliders reducing resonance so that cutting precision is better.

stepper motors of premium co2 laser machine

Driving System: precision 3-phase stepper motors with ratio gears.


water cooling system for co2 laser machine

Water cooling system: S&A brand industrial water chiller. The water circulation cools the laser tube, protects the laser tube from high temperature during working. It ensures stable laser output.

Packing for premium CO2 laser cutting machine.


Machine Application

Applicable Materials
Wood products, paper, plastic, rubber, acrylic, bamboo, marble, double-color sheets, glass, wine bottles and other non-metal materials
Application Industries
Advertising signs and boards, arts and crafts, awards and trophies, paper-cutting, architectural model , lights and lamps, printing and packaging, electronic appliances, photo frames and albums, garment leather and other industries.
