Portable mini fiber laser marking machine

Product name: Portable mini fiber laser marking machine
Model:
Laser power: 20w, 30w, 50w, 100w
Working range:
Application:

Machine features

LaserMen portable mini fiber laser marking machine

Machine Features
1. Portable design, flexible application, convenient and efficient operation。
2. Aluminum alloy machine structure.
3. High quality laser source (Raycus brand, optional: IPG, MAX, JPT, CAS, etc.), good laser beam quality, uniform laser power density, and stable laser power output. It has the characteristics of no laser leakage, resistance of high reflection and so on, meeting the application demand of the mainstream market.
4. High speed galvano scanner has the advantages of small size, high scanning speed and good stability. Its performance reaches the advanced level in the world.
5. Easy to use, no consumables, low power consumption; The marking is more precise and clear. It has an irreplaceable advantage in areas where depth, smoothness and fineness are highly demanded. It fully meet the needs of industrial continuous working.
6. Strong marking software with multiple functions, compatible with software AutoCAD, Coreldraw, Photoshop, etc.; supporting formats of PLT、AI、DXF、BMP、JPG, etc.; supporting SHX and TIF font library, and itself possessing multi-font library; Support marking of variable numbers, bar codes, QR codes, etc.
7. Based on different working requirements, we can build the machine with optional functions like rotary, 2D/3D work table, auto focusing, dynamic auto focusing, etc.

Technical parameters

Model  LM-20 LM-30 LM-50
Output laser power  20w 30w 50w
Laser type Fiber laser
Laser wavelength 1064nm
Modulation frequency range
20kHz~80kHz
Maximum speed 7000mm/sec
Resolution 0.01mm
Repositioning precision
0.03mm
Marking range
100x100mm
Minimum line width
0.01mm
Minimum height of characters
0.2mm
Laser cooling type Air cooling
Laser power supply
Single phase 220V, 50Hz
Environmental requirements
0 ~ 35 °C, 90% or humidity

Portable mini fiber laser marking machine Dimensions:
Model Package dimensions Gross weight
LM-20 / LM-30 / LM-50  990*500*770mm=0.4CBM 100KGS




Video

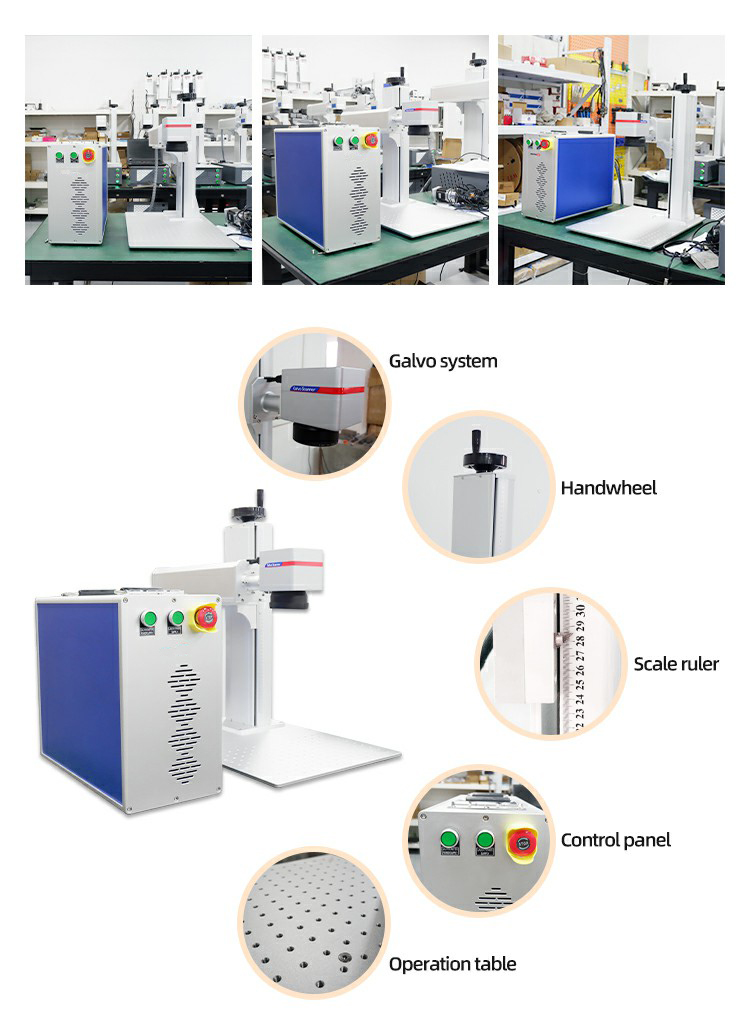

Machine details

Machine Application

Applicable Materials
Plastics, stainless steel, brass, hard alloy, electroplating products, ABS, epoxy resin, painted coated products, ceramics, etc.
 Application Industries
Suitable for integrated circuit chips, computer accessories, industrial bearings, watches and clocks, electronics and communications products, aerospace devices, various automobile parts, home appliances, hardware tools, molds, wire and cable, food packaging, jewelry, cigarettes and tobacco, military and other industries.
