Dynamic co2 laser marking machine

Product name: Dynamic co2 laser marking machine
Model: LM-6060
Laser power: 80W / 100W / 130W / 150W
Working range: 600*600mm
Application: engrave and cut various non-metal materials

Machine features

1. Stable laser output,fast marking speed, strong cutting ability, high precision.
2. Optional motorized Z to get best laser spot and laser intensity for different marking area size.
3. 3D dynamic galvanometer system, fast marking speed, bigger working range.
4. With red light locating system, ensuring processing accuracy, minimizing production wastes.Marking area can be adjusted according to different precision requirements.

Technical parameters

Machine models

LM-6060

Laser power

80W / 100W / 130W / 150W

Laser type

Glass sealed co2 laser tube, wavelength 10.6um

Marking rang

600*600 mm

laser wavelength

10.6um

Repetition locating accuracy

0.01mm

Min. line width

0.01mm

Laser output control

Real-time adjustable

Support formats

*.plt, *.dxf, *.bmp, *.dwg, *.ai, *.las, support AutoCAD CoreDraw etc.



Video

Machine details

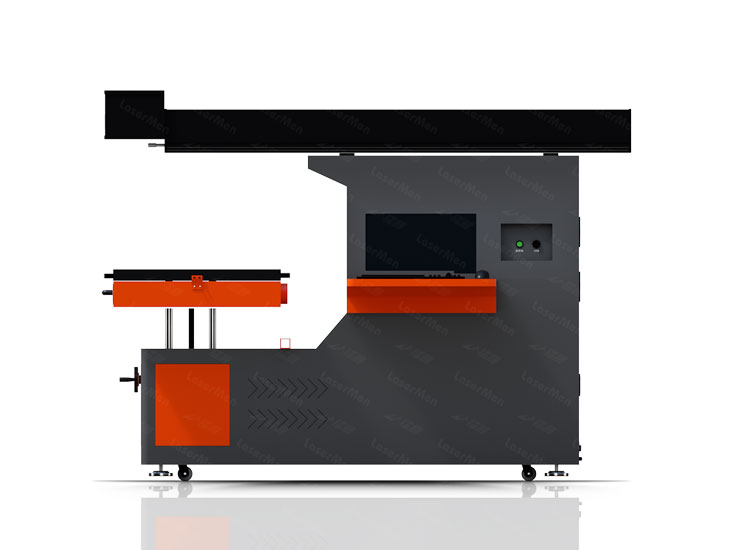

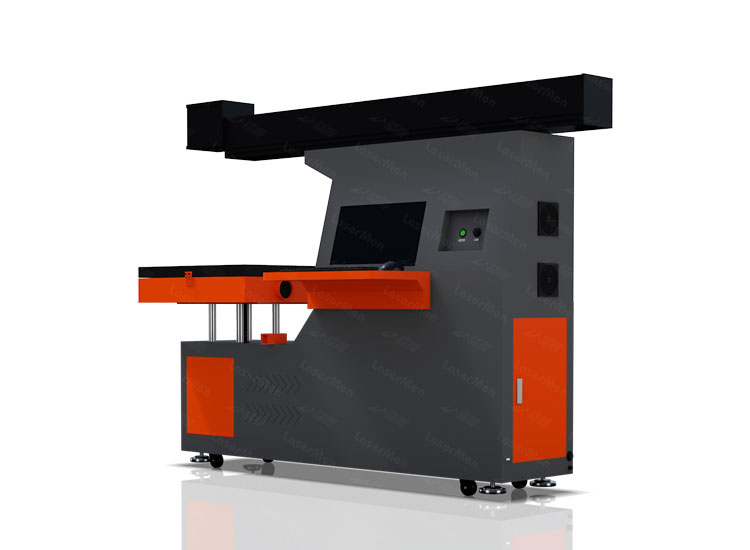

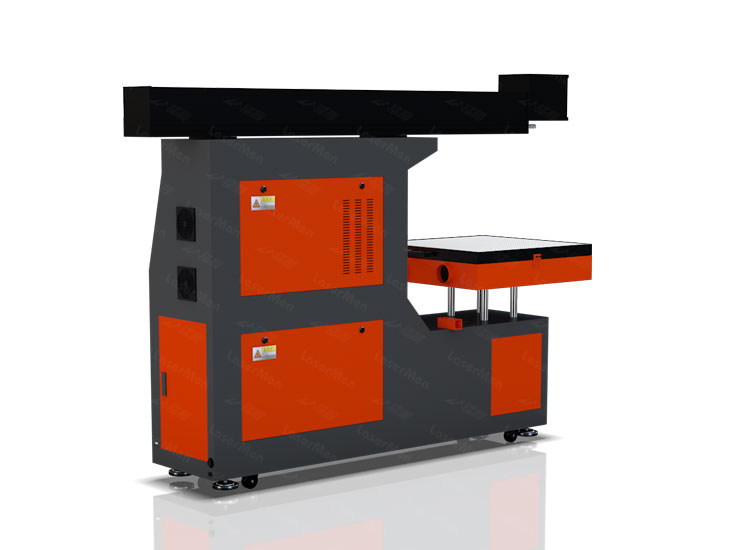

3D Dynamic co2 laser marking machine with 600*600mm working area

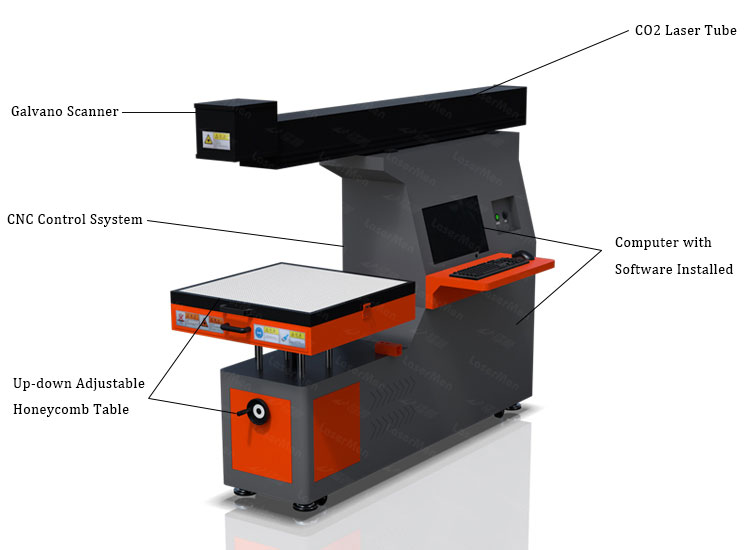

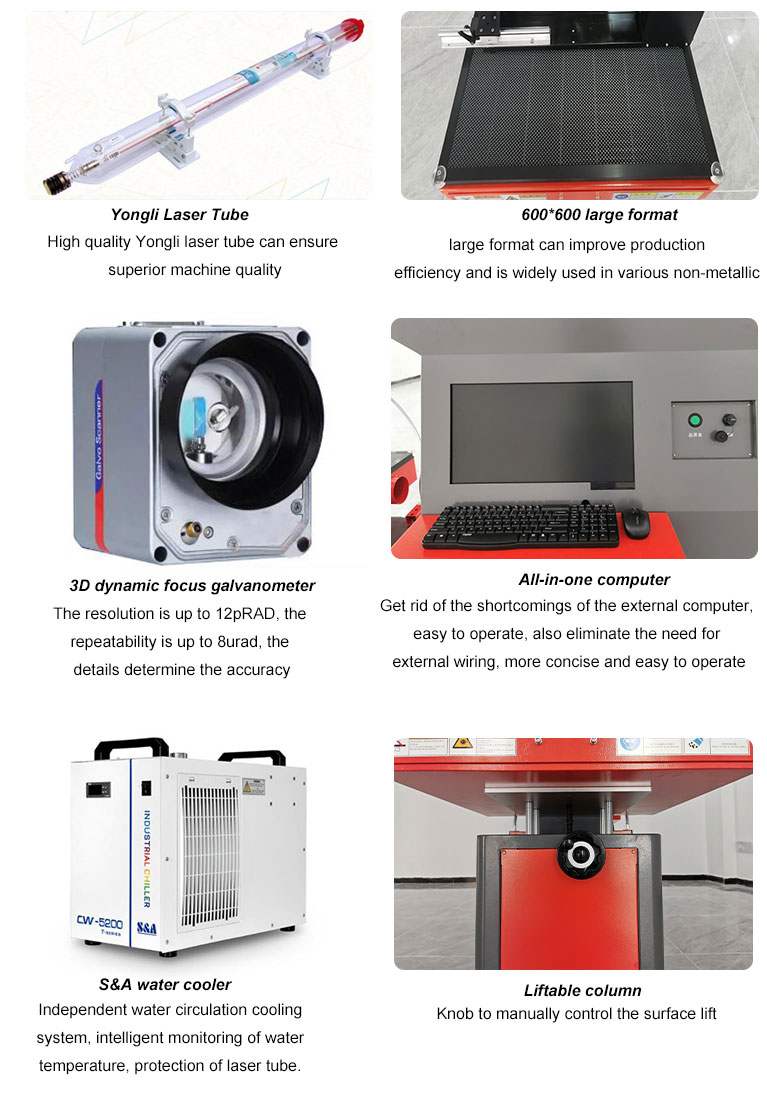

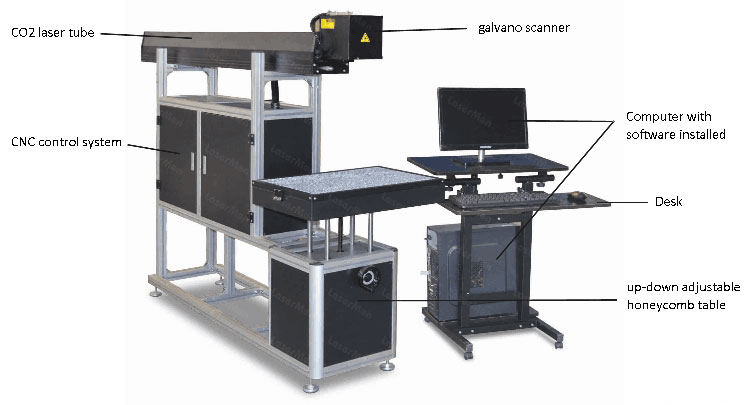

Machine Specifications:
1. 600*600mm maximum marking range size
2. CO2 glass laser tube with coaxial red light
3. S&A water chiller
4. Dynamic galvo scanner
5. Controller system
6. Honeycomb table
7. A desktop computer
8. A 550W exhaust fan
9. plywood case package

Machine Application

Machine application:
The dynamic co2 laser marking machine is able to engrave and cut various non-metal materials.
For example: engraving on jeans / demin, cards, leather, wood, plastic, mdf, glass, coated metal, pvc, rubber, stone, etc.
And cutting: paper, cards, cloth, leather, etc.

Samples of co2 dynamic laser marking machine
