Machine features

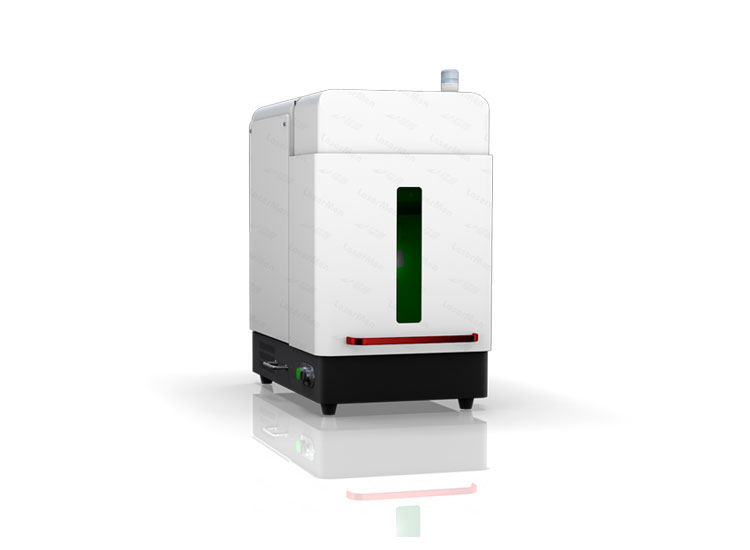

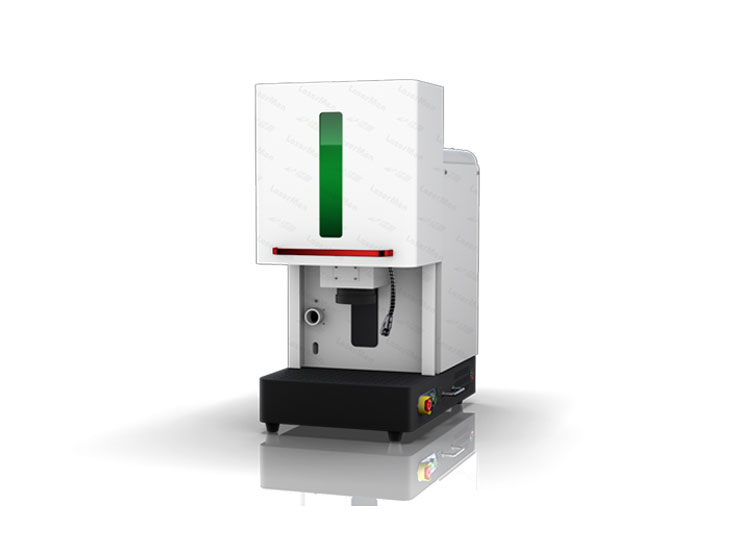

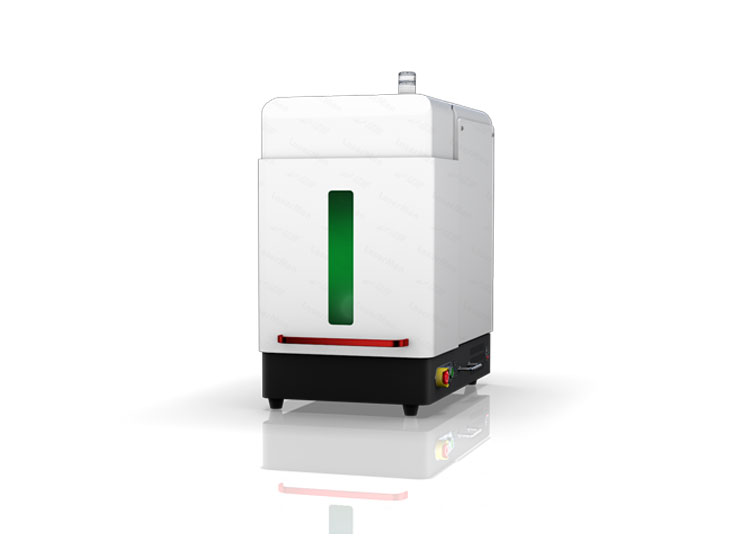

Enclosed mini smart fiber marking machineMachine Features
1.Enclosed design, safe and effective.
2.Suitable for delicate marking.
3.Machine able to achieve high speed marking, and control the depth and shape of the facula.
4.With red light positioning device, accurately indicates the location of the processing of the laser head.
Technical parameters
Model | LM-20 | LM-30 | LM-50 |
Output laser power | 20w | 30w | 50w |
Laser type | Fiber laser | ||
Laser wavelength | 1064nm | ||
Modulation frequency range
|
20kHz~80kHz
|
||
Maximum speed | 7000mm/sec | ||
Resolution | 0.01mm | ||
Repositioning precision
|
0.03mm | ||
Marking range |
100x100mm
|
||
Minimum line width
|
0.01mm | ||
Minimum height of characters
|
0.2mm | ||
Laser cooling type | Air cooling | ||
Laser power supply |
Single phase 220V, 50Hz
|
||
Environmental requirements
|
0 ~ 35 °C, 90% or humidity
|
Portable mini fiber laser marking machine Dimensions:
Model | Package dimensions | Gross weight |
LM-20 / LM-30 / LM-50 | 990*500*770mm=0.4CBM | 100KGS |
Video
Machine details

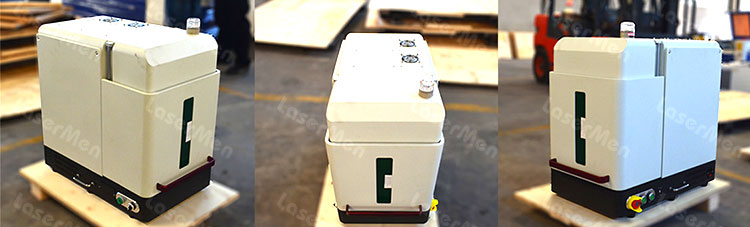

![mini fiber laser marking machine](/uploadfile/2020/1030/20201030053947157.jpg)
Air outlet
![laser marking Air outlet](/uploadfile/2023/0331/20230331042918116.jpg)

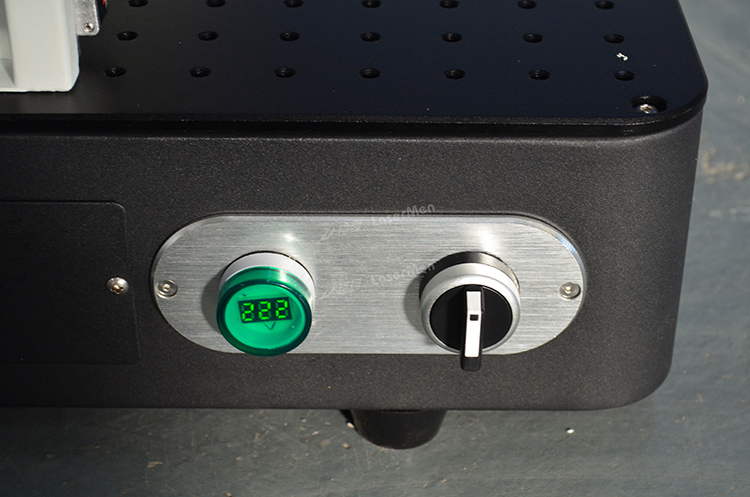

Ammeter Electric And Lift Switch
![laser marking Ammeter, electric lift switch](/uploadfile/2023/0331/20230331042956929.jpg)

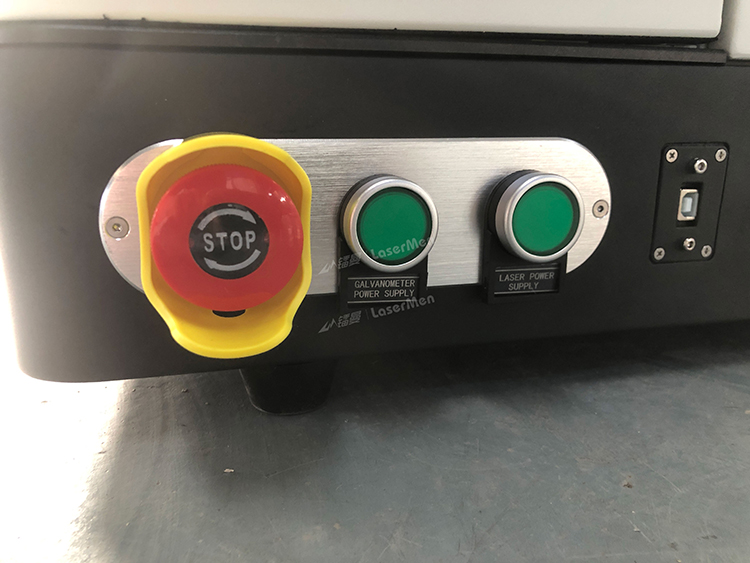

Controller
![laser marking controller](/uploadfile/2023/0331/20230331043023503.jpg)

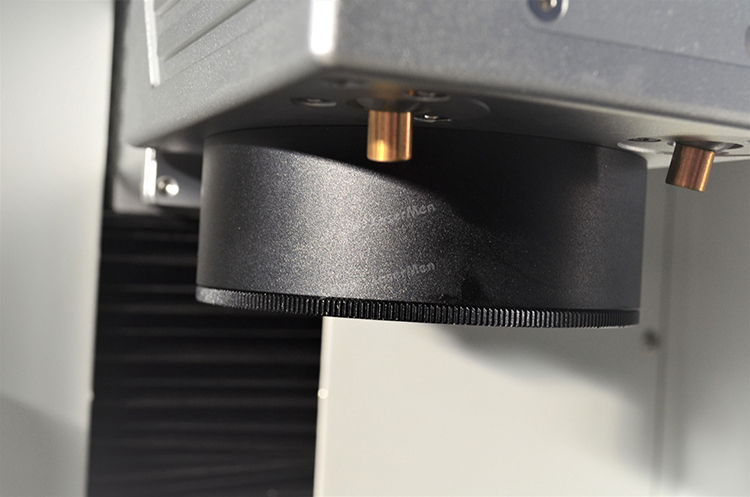

Double Red Light Galvanometer
![laser marking Double red light galvanometer](/uploadfile/2023/0331/20230331043048603.jpg)

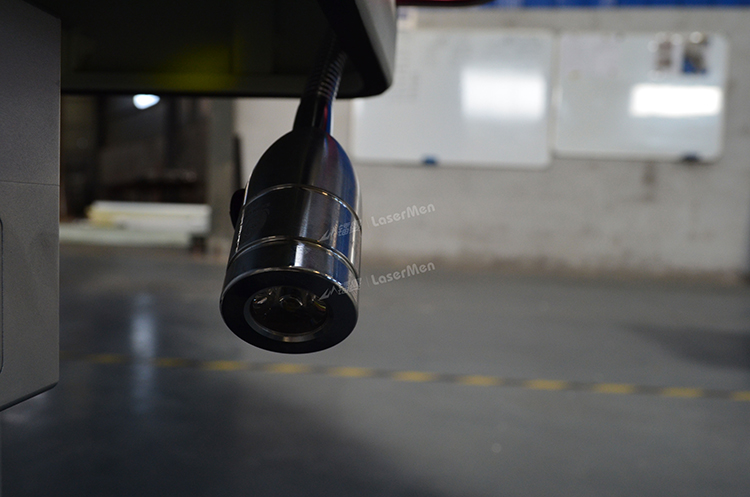

LED Light
![laser marking LED light](/uploadfile/2023/0331/20230331043127404.jpg)

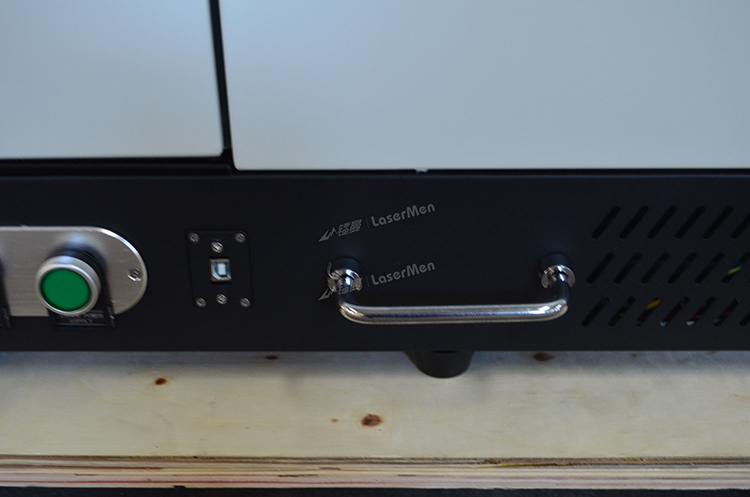

Left And Right Carrying Handle
![laser marking left and right carrying handle](/uploadfile/2023/0331/20230331043152674.jpg)
Machine Application
Sealed laser marking machines are widely used in integrated circuit chips, computer accessories, industrial bearings, clocks, electronics and communication products, aerospace devices, various auto parts, home appliances, hardware tools, molds, wires and cables, food packaging, jewelry, Marking of graphics and text in many fields such as tobacco and military affairs, as well as mass production line operations.![fiber laser marking machine samples](/uploadfile/2022/1109/20221109042229918.jpg)
![fiber laser marking machine samples](/uploadfile/2022/1109/20221109042407779.jpg)
![fiber laser marking machine samples](/uploadfile/2022/1109/20221109042439134.jpg)
![fiber laser marking machine samples](/uploadfile/2022/1109/20221109042504855.jpg)
