Machine features
- It can work offline and can be used immediately after power on.
- Collimated laser beam output, beam size customizable (default 4mm).

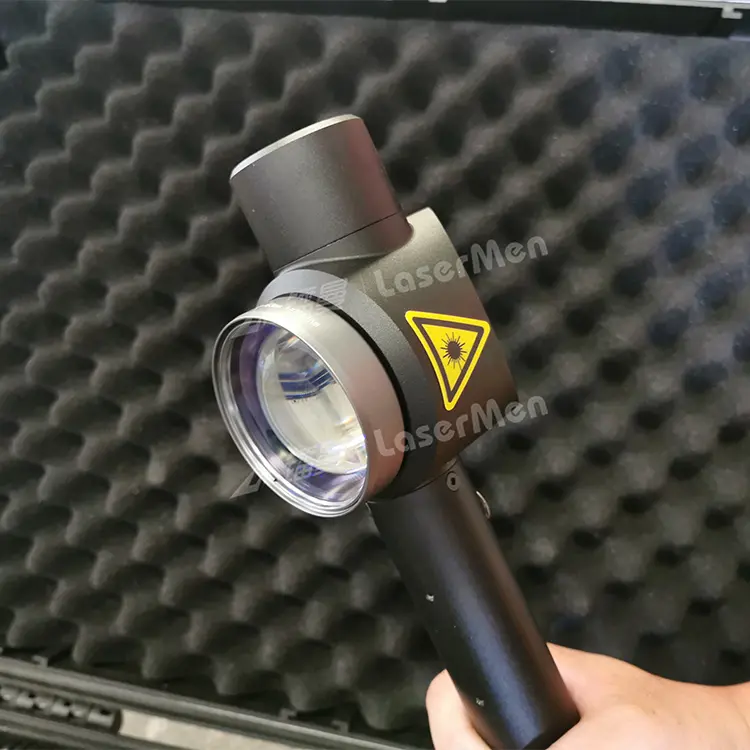

- The cleaning head is extremely lightweight, 620g only (not include delivery cable), and can be operated by hand for a long time.
- Patented red light assisted focus technology, can adjust the focus position according to different focus lenses.
- Wireless control, can realize parameter setting and emission control remotely, and update parameters at any time.

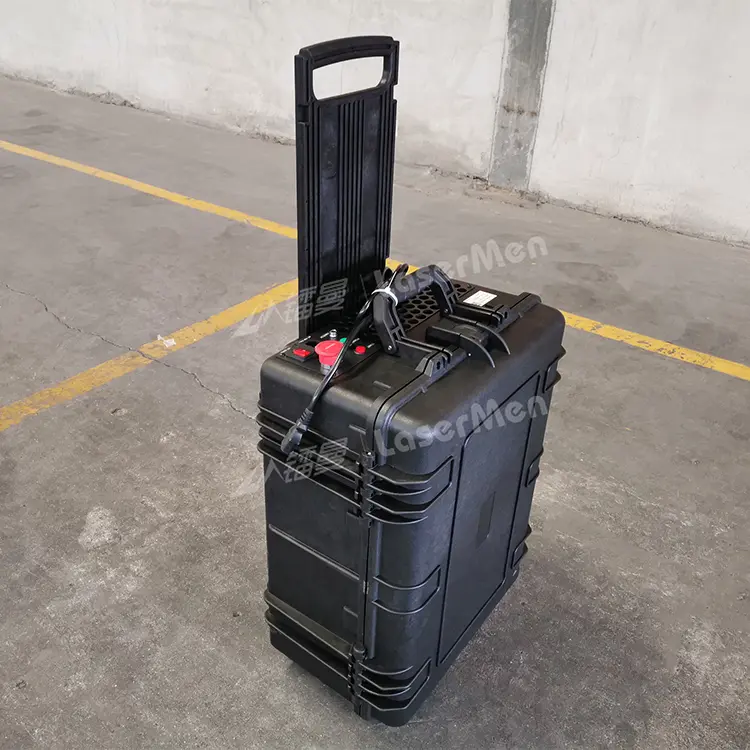

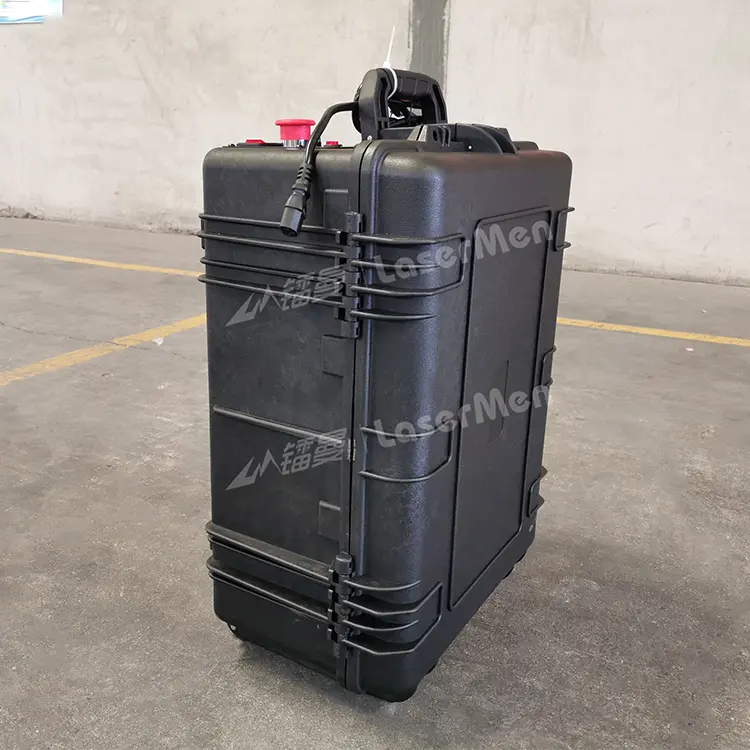

- Trolley-type chassis design, can be carried on high-speed train and flight easily with 28kg full weight.
- Super integrated injection molding chassis, cushioning design, stable structure, wearable, shockproof and drop resistance.
Technical parameters
|
Fiber laser |
|
JPT brand M7 100W laser |
|
M² |
|
<2 |
|
Delivery Cable Length |
m |
5 |
|
Average Output Power |
w |
>100 |
|
Maximum Pulse Energy |
mJ |
1.5 |
|
Pulse Frequency Range |
kHz |
1-4000 |
|
Pulse Width |
ns |
2-500 |
|
Output Power Instability |
% |
<5 |
|
Cooling Method |
|
Air Cooled |
|
Power Supply Voltage |
v |
48V |
|
Power Consumption |
w |
<400 |
|
Power supply current requirement |
A |
>8 |
|
Central Wavelength |
nm |
1064 |
|
Emission Bandwidth (FWHM)@3dB |
nm |
<15 |
|
Polarization |
|
Random |
|
Anti-Reflection Protection |
|
Yes |
|
Output Beam Diameter |
mm |
4.0±0.5，7.5±0.5（Customizable） |
|
Output Power Tuning Range |
% |
0～100 |
|
Ambient Temperature Range |
℃ |
0～40 |
|
Storage Temperature Range |
℃ |
-10～60 |
|
Dimensions |
mm |
617*469*291 |
|
Weight |
KGS |
28 |

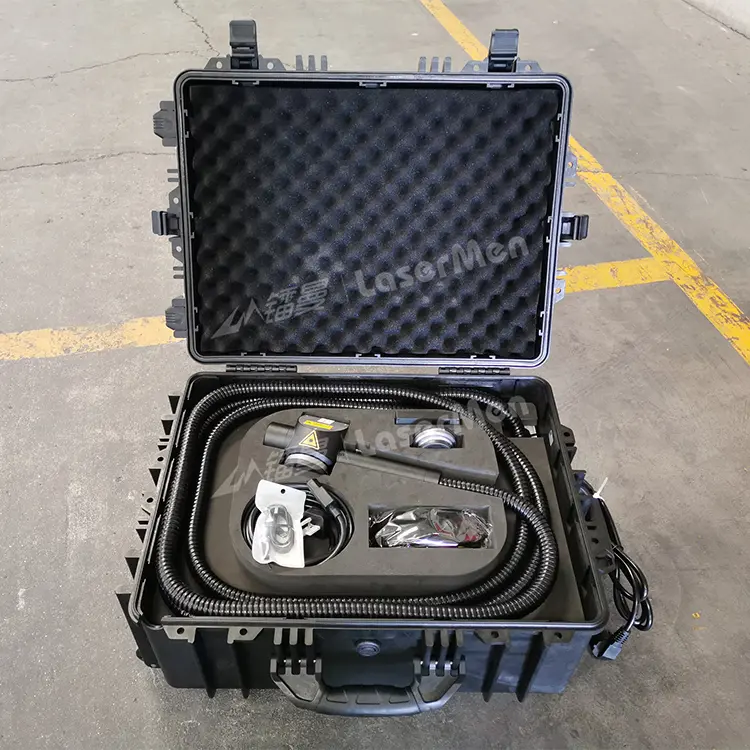

| Item | Quantity |
| Fiber laser | 1 |
| Cleaning head | 1 |
| Laser safety Goggles | 1 |
| F-theta: f=163mm | 1 |
| F-theta: f=254mm | 1 |
| Remote control card | 1 |
| Power cord | 1 |
Video
Machine details
Machine Application
1.It is widely used in the industries such as advertising signs, hardware products, doors, windows, auto parts, craft gift etc.2.It can be used to clean various metallic materials, like carbon steel, stainless steel, titanium, aluminum, brass, etc.
