Machine features
1. Outstanding cutting cross section, high precision, good stability, satisfying the processing demands of precision parts. Dynamic performance is stable, able to work for long time.2. Capable of cutting both non-metal and metal, able to cut stainless steel, carbon steel, acrylic and wood, etc.
3. Laser cutting head with auto focusing system. Laser cutting head automatically adjusts its height along the metal sheet surface, ensuring the focal length keeps the same all the time. Smooth cutting edge, no need polishing or other further handing. Flat and wavy steel sheets can be cut with this machine.
4. Double heads can be selected. The co2 laser head mainly used for engraving nonmetal materials, such as wood, acrylic, mdf, leather, plywood, plastic, etc.
Technical parameters
Model: | LM-1390 | LM-1325 |
Laser type: | CO2 glass laser tube, wavelength 10.6μm, water-cooled | |
Laser power: | 150W, 180W, 240W, 300W + 80W | 150W, 180W, 240W, 300W + 80W |
Working area: | 1300x900mm | 1300x2500mm |
Engraving speed: | 0-500mm/sec | |
Cutting speed: | 0-500mm/sec | |
Repeating location: | ±0.01 | |
Transmission type: | Belt transmission | |
Driving system: | Stepper motor | |
Machine table: | Blade table (alternative: honeycomb table) | |
Graphic format supported: | *.plt, *.dst, *.dxf, *.bmp, *.dwg, *.ai, *.las, supporting AutoCAD and CorelDraw | |
Software supported: | CorelDraw, AutoCAD | |
Control system: | RuiDa RD6332M DSP Off-line control system, laser power 0~100% adjustable | |
Minimum letter size: | Chinese 2.0x2.0mm, English 1.0x1.0mm | |
Working voltage: | Single phase 220V/50Hz (Optional: 220V/60Hz, 110V/60Hz) | |
Working condition: | Temperature 0~45 Celsius; Humidity 5%~95% no condensation |
Material | Cut | Engrave | Material | Cut | Engrave |
Wood | √ | √ | Pressboard | √ | √ |
Acrylic | √ | √ | Rubber | √ | √ |
Fabric | √ | √ | Wood Veneer | √ | √ |
Glass | √ | Fiberglass | √ | √ | |
Coated Metals | √ | √ | Painted Metals | √ | √ |
Ceramic | √ | Tile | √ | ||
Delrin | √ | √ | Plastic | √ | √ |
Cloth | √ | √ | Cork | √ | √ |
Leather | √ | √ | Corian | √ | √ |
Marble | √ | Stainless steel | √ | ||
Matte Board | √ | √ | Carbon Steel | √ | |
Melamine | √ | √ | Galvanized Steel | √ | |
Paper | √ | √ | Titanium | √ | |
Mylar | √ | √ | Aluminum | ||
150w-300w mainly cut metal and nonmetal materials, 80w can engrave most nonmetals. |
Cutting capacity (cutting thickness: mm) | ||||
Material | 150w | 180w | 240w | 300w |
Wood | 15 | 18 | 18 | 23 |
Acrylic | 25 | 25 | 25 | 30 |
MDF | 12 | 13 | 13 | 15 |
Steel | 1 | 1.5 | 2 | 3 |
Many other non metals | rubber, pcv, leather, cardboard |
Video
Machine details
Product introduce:

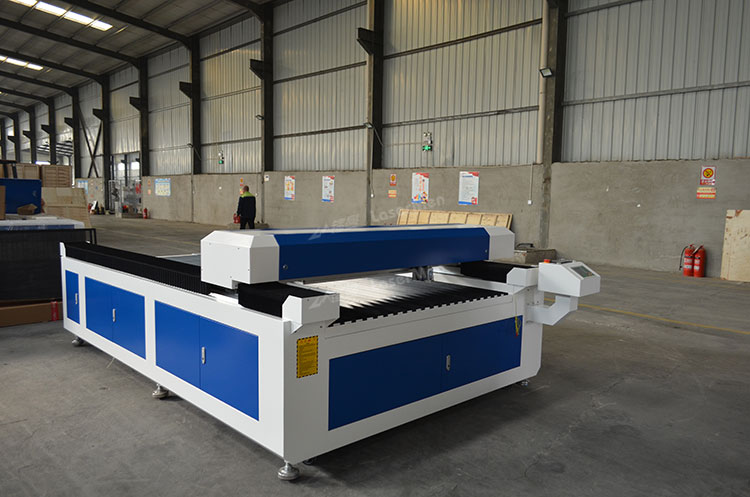

CO2 hybrid mix laser cutting machine is a widely used CO2 laser machine. It can cut both metal and non-metal materials and meets most users working requirements. The machine provides strong functions at a reasonable price.
LM-1390 and LM-1325 CO2 hybrid laser cutting machine can be build with two heads. The hybrid laser head (150W/180W/240W/300W) for cutting metals and non-metals; and we can add an extra 80W laser head for engraving and cutting non-metals.
Double heads working CO2 hybrid laser machine is a multifunctional and cost-effective laser machine. The hybrid laser head with auto focusing system can cut both metal and nonmetals, the extra co2 laser head can engrave most nonmetals, such as wood, acrylic, stone, plywood, acrylic, stone, glass, rubber etc. The feedback of the laser machine is great.
Control system
CO2 Hybrid laser cutting machine with two heads working with high efficiency and high speed for metal and nonmetals.
RuiDa controller system with friendly operation display and color screen. The processing pattern or letters can be imported directly from the laptop or by the USB flash.
There are 16 kinds of languages can be selected from the RuiDa software.

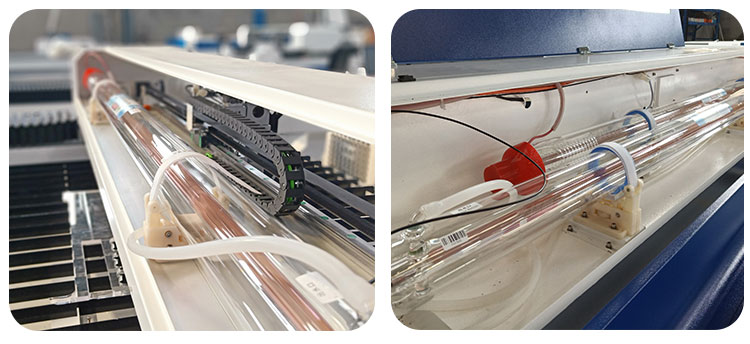

Laser tube: Two laser tube for the hybrid laser machine with China top quality brand. The co2 or combined laser tube can be with 150w, 180w,240w, 300w. It main for cutting steel and nonmetals. The co2 glass laser tube can be with 80w, it main for engraving nonmetals and cutting thin nonmetal materials.
There are 16 kinds of languages can be selected from the RuiDa software.
Laser tube: Two laser tube for the hybrid laser machine with China top quality brand. The co2 or combined laser tube can be with 150w, 180w,240w, 300w. It main for cutting steel and nonmetals. The co2 glass laser tube can be with 80w, it main for engraving nonmetals and cutting thin nonmetal materials.
Stepper motor: Stepper motor, small size, stable operation, low noise, high efficiency.
Cooling System:
Industrial water chiller cools and protects the laser tube from high temperature, ensuring stable laser output and lasting laser tube lifetime.S&A CW-5200 for 150W / 180W laser tube, S&A CW-6000 for 240W / 300W laser tube.
Machine Application
Applicable Materials
Non-metals: cutting acrylic, wood, MDF and other non-metal materials. Line engraving also can be done.
Metal: iron, stainless steel, carbon steel, galvanized steel, titanium sheets. Line engraving also can be done.
Application Industries
Advertising industry (stainless steel and acrylic), sheet metal industry (carbon steel), packaging industry (plywood), arts and crafts, awards and trophies, paper-cutting, architectural models, lights and lamps, electronic appliances, photo frame and album, garment leather and other industries.
Non-metals: cutting acrylic, wood, MDF and other non-metal materials. Line engraving also can be done.
Metal: iron, stainless steel, carbon steel, galvanized steel, titanium sheets. Line engraving also can be done.
Application Industries
Advertising industry (stainless steel and acrylic), sheet metal industry (carbon steel), packaging industry (plywood), arts and crafts, awards and trophies, paper-cutting, architectural models, lights and lamps, electronic appliances, photo frame and album, garment leather and other industries.
