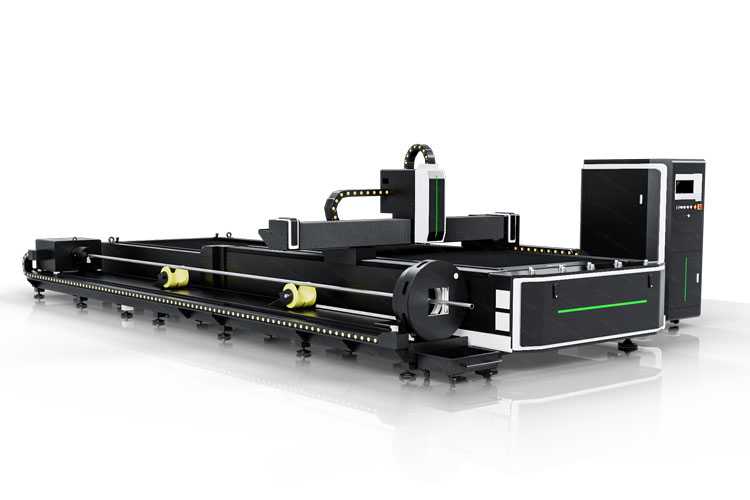

Metal Sheet and Tube Fiber Laser Cutter with Exchange Table

Product name: Metal Sheet and Tube Fiber Laser Cutter with Exchange Table
Model: LM-1530ET / LM-1560ET
Laser power: 1000W / 1500W / 2000W / 3000W
Working range: Sheet: 1500 x 3000mm / 1500 x 6000mm; Tube: Maximum 220mm diameter and 3 meters or 6 meters length
Application: High efficiency metal plate and tube cutting with exchange table

Machine features

1. Multifunction fiber Laser cutting machine can cut metal plate and metal tube.
2. With exchanging worktable, easier to loading and unloading the metal sheet.
2. Cost-saving and high performance working, it has many uses and can save the space of more than 50%, which effectively improve productivity.
3. Machine adopts CYPCUT control system, two software (CYPCUT software for metal sheet cutting, Tubepro software for metal tube cutting).
4. The Rotary device can hold up maximum 220mm diameter metal tube, standard tube length is 3 meters or 6 meters, other length also can be customized.

Technical parameters

Model LM-1530ET / LM-1560ET
 Laser type Fiber laser, 1080nm
 Laser power 1000W, 1500W, 2000W, 3000W
Fiber laser brand Raycus / MAX / RECI / BWT
 Working area Sheet: 1500mm x 3000mm / 1500mm x 6000mm
Tube: 220mm diameter x 3 meters or 6 meters length

 Min Line width 0.1mm
 Positioning accuracy 0.01mm
 Max. Cutting speed 60m/min
 Max acceleration 1.5G
 Transmission type Precision dual gear rack transmission
 Driving system Serve motors
 Cutting thickness Depending on laser power and material
 Assisting gas Compressed air, oxygen and nitrogen
 Cooling mode Industrial circulation water chiller
 Visual positioning Red dot
 Machine weight Net 4500kgs
 Working voltage 3 phase 380V 50HZ/60HZ


Machine details

exchange table fiber laser cutting machine
exchange table fiber laser cutting machine

Machine Application

Metal Sheet Laser Cutting Machine---Applicable Materials
Carbon steel, stainless steel, alloy steel, spring steel and copper, aluminum, gold,silver and titanium sheets and pipes.

Tube Fiber Laser Cutting Machine---Application Area
Machinery parts electrics, sheet metal fabrication, electrical cabinet, kitchenware, elevator panel, hardware tools, metal
enclosure, advertising sign letters, lighting lamps, metal crafts, decoration, jewelry, medical instruments, automotive parts
and other metal cutting fields.
fiber laser cutting samples
